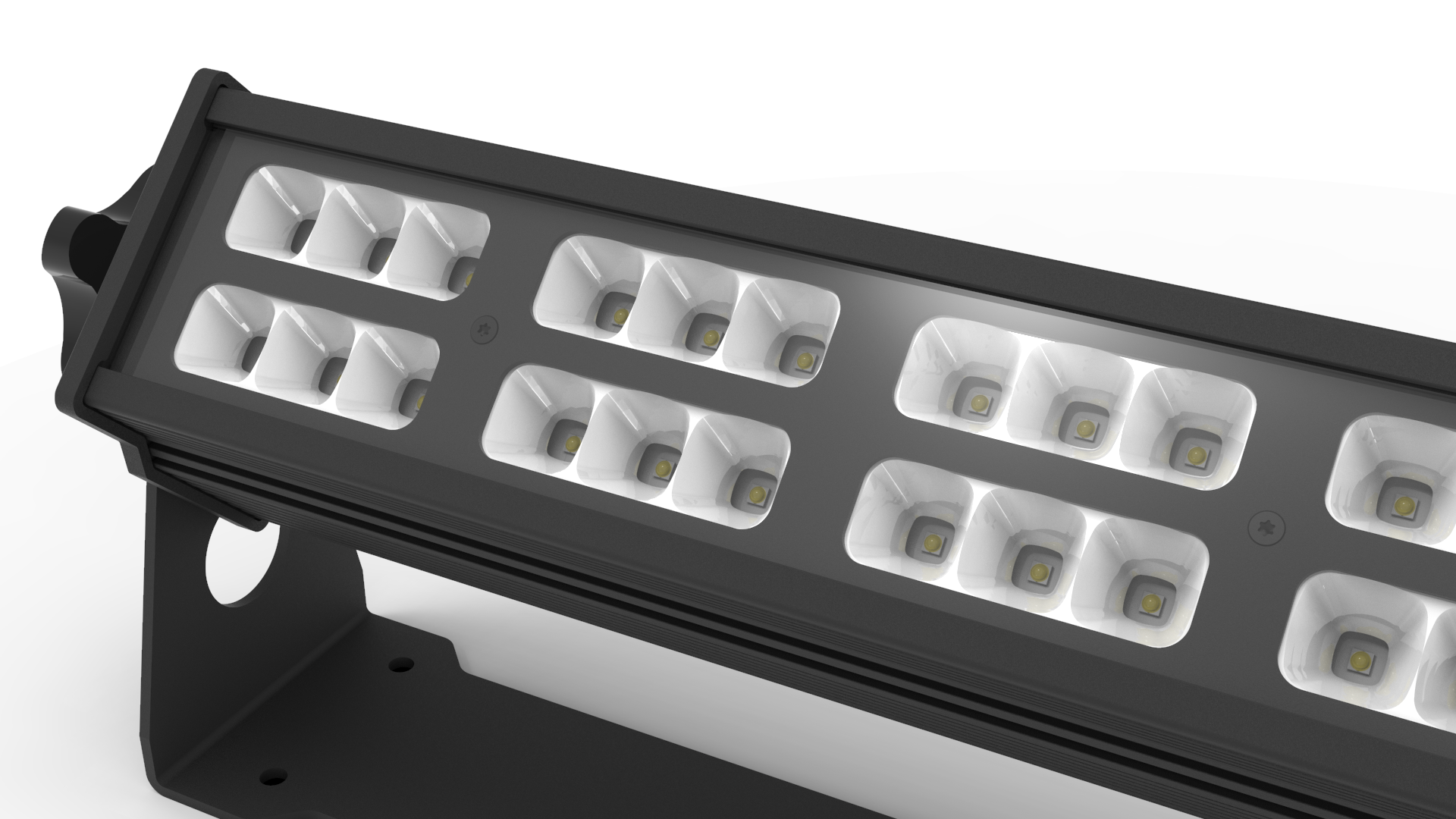

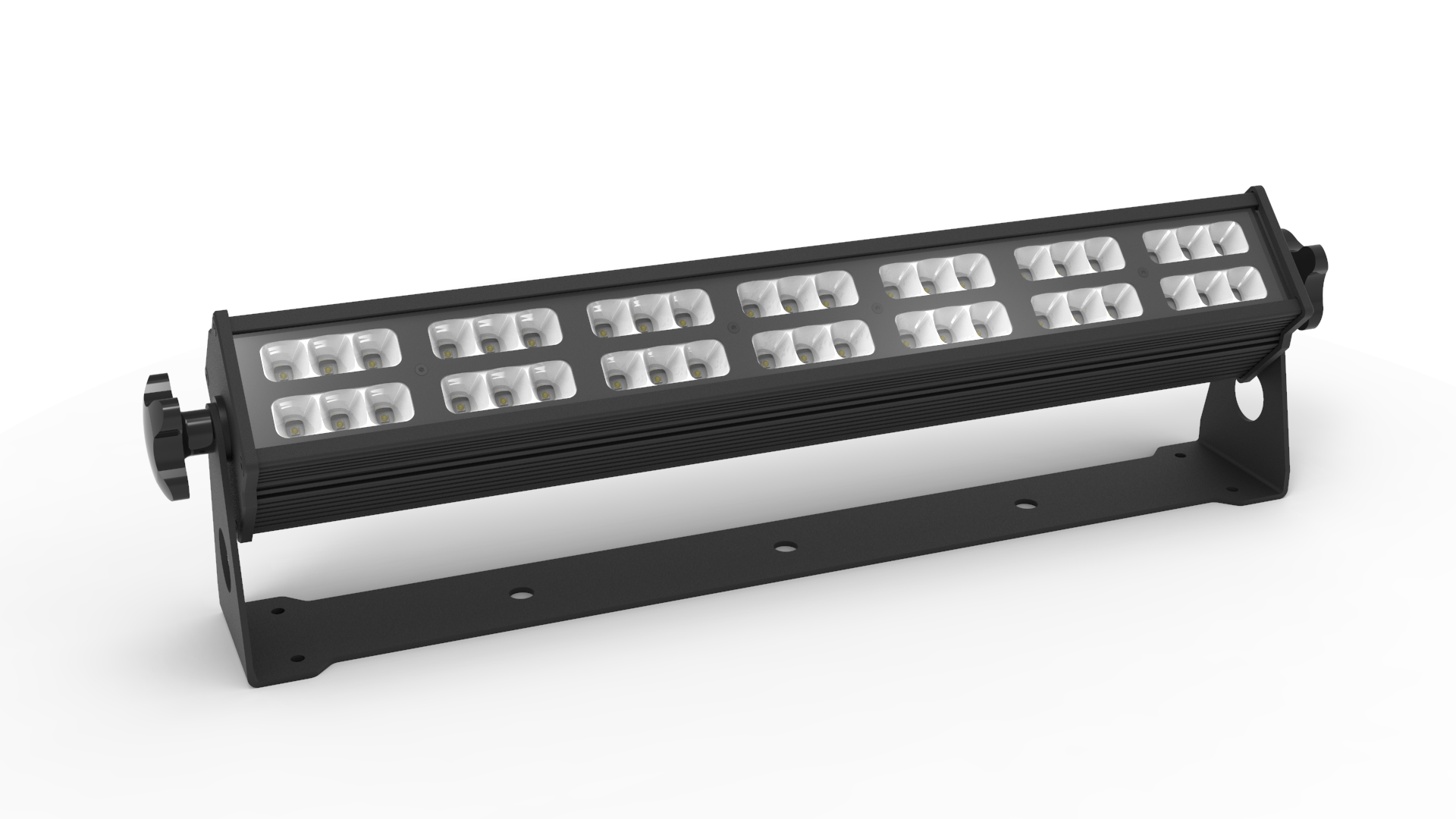

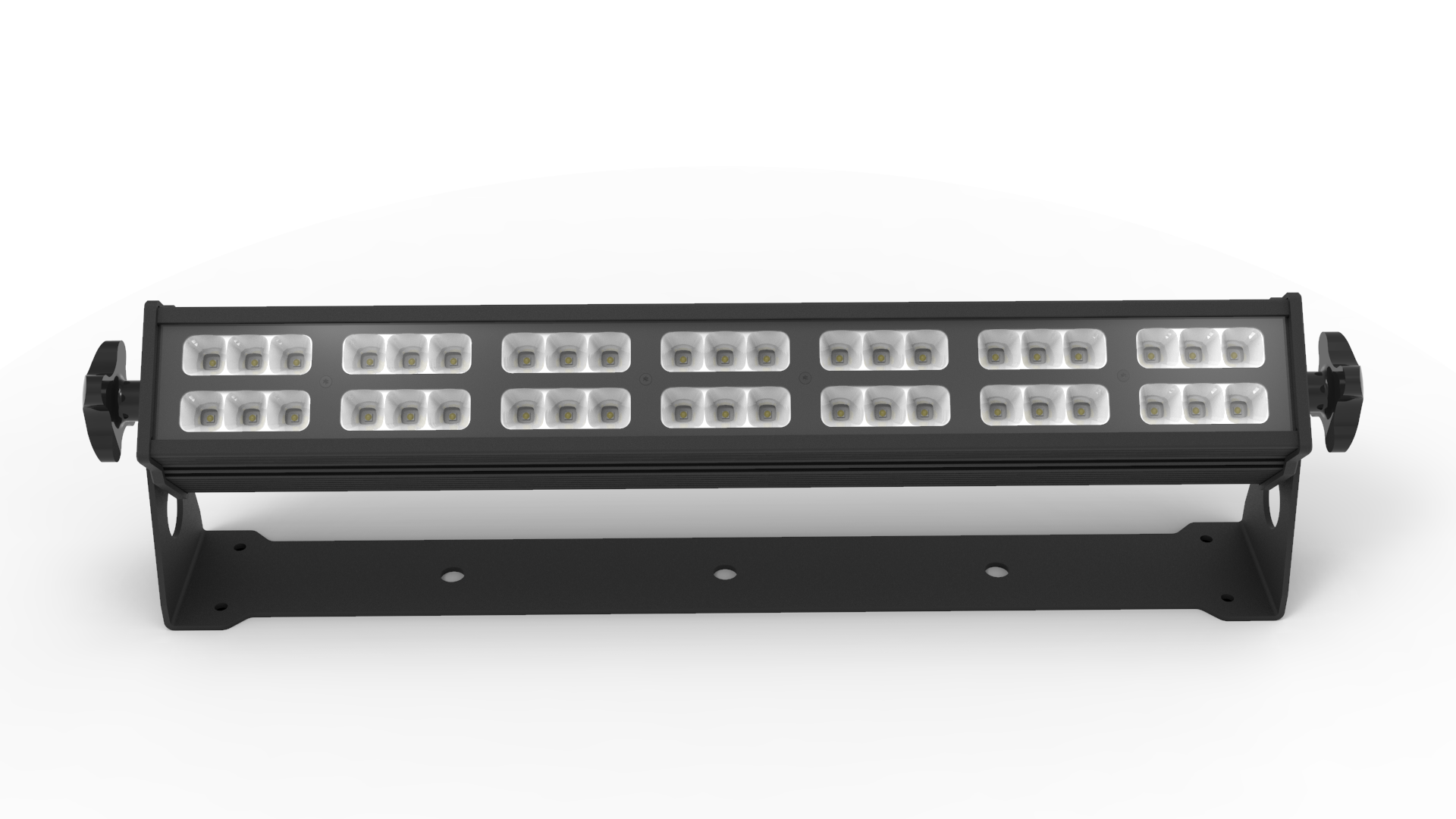

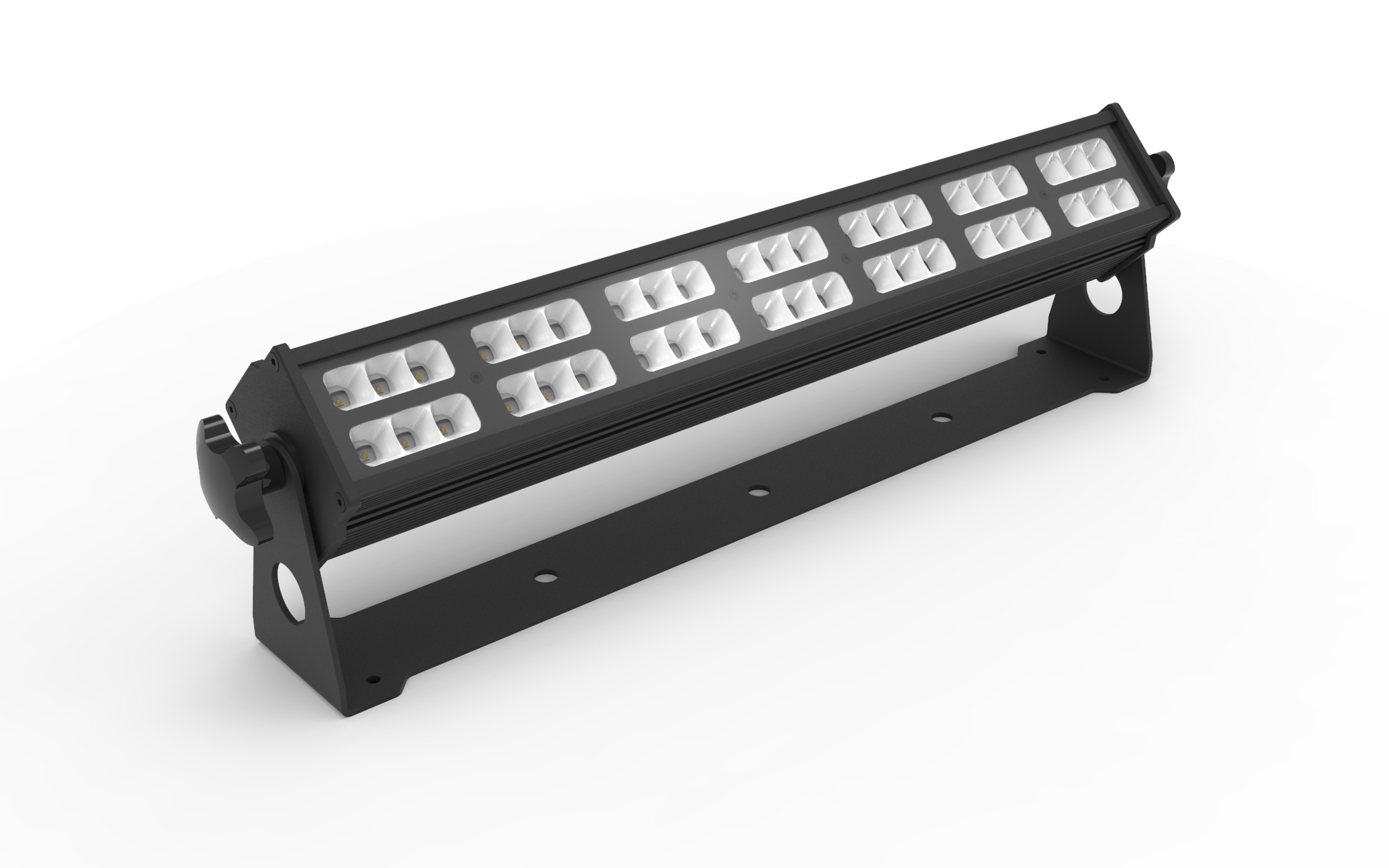

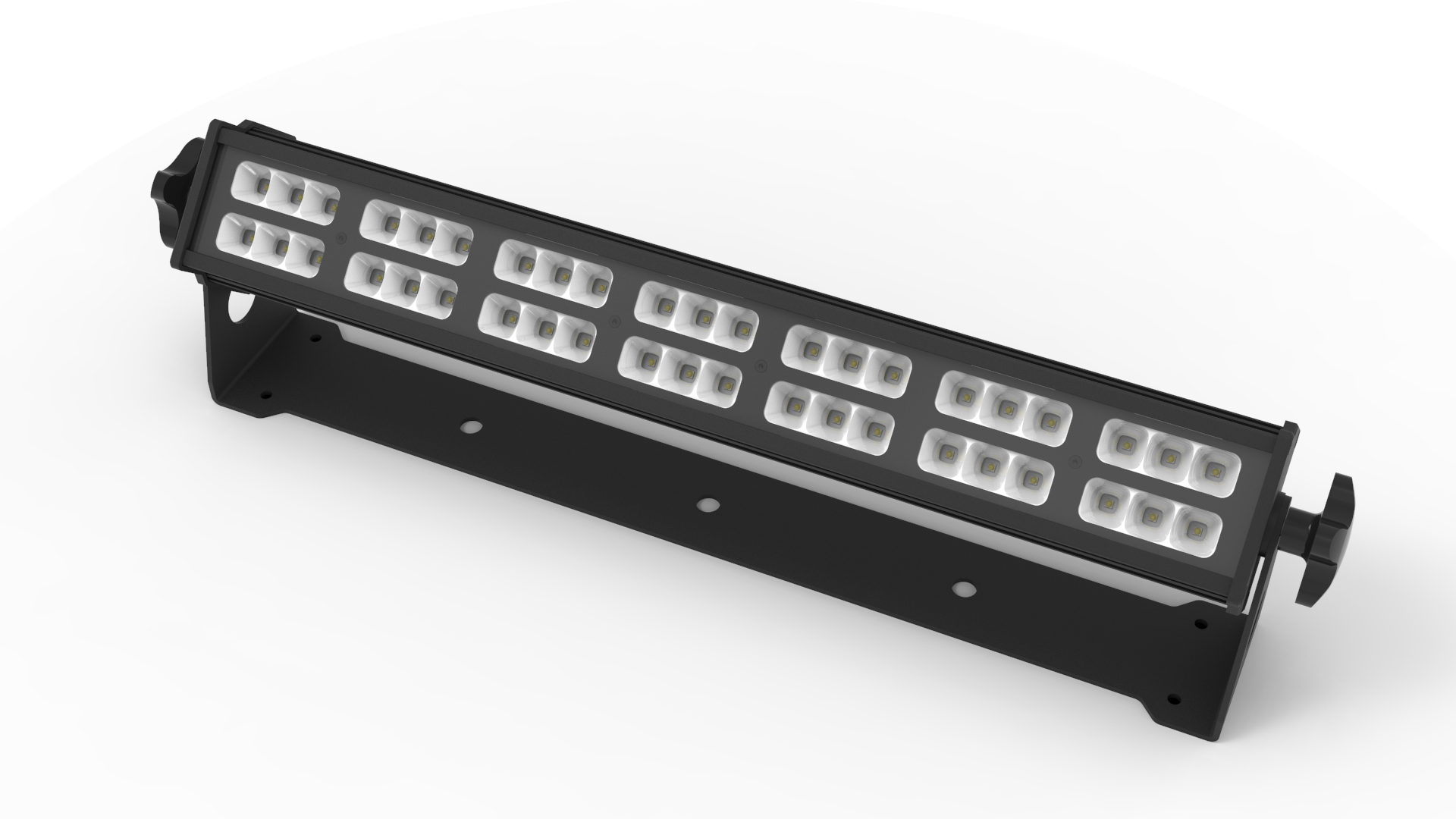

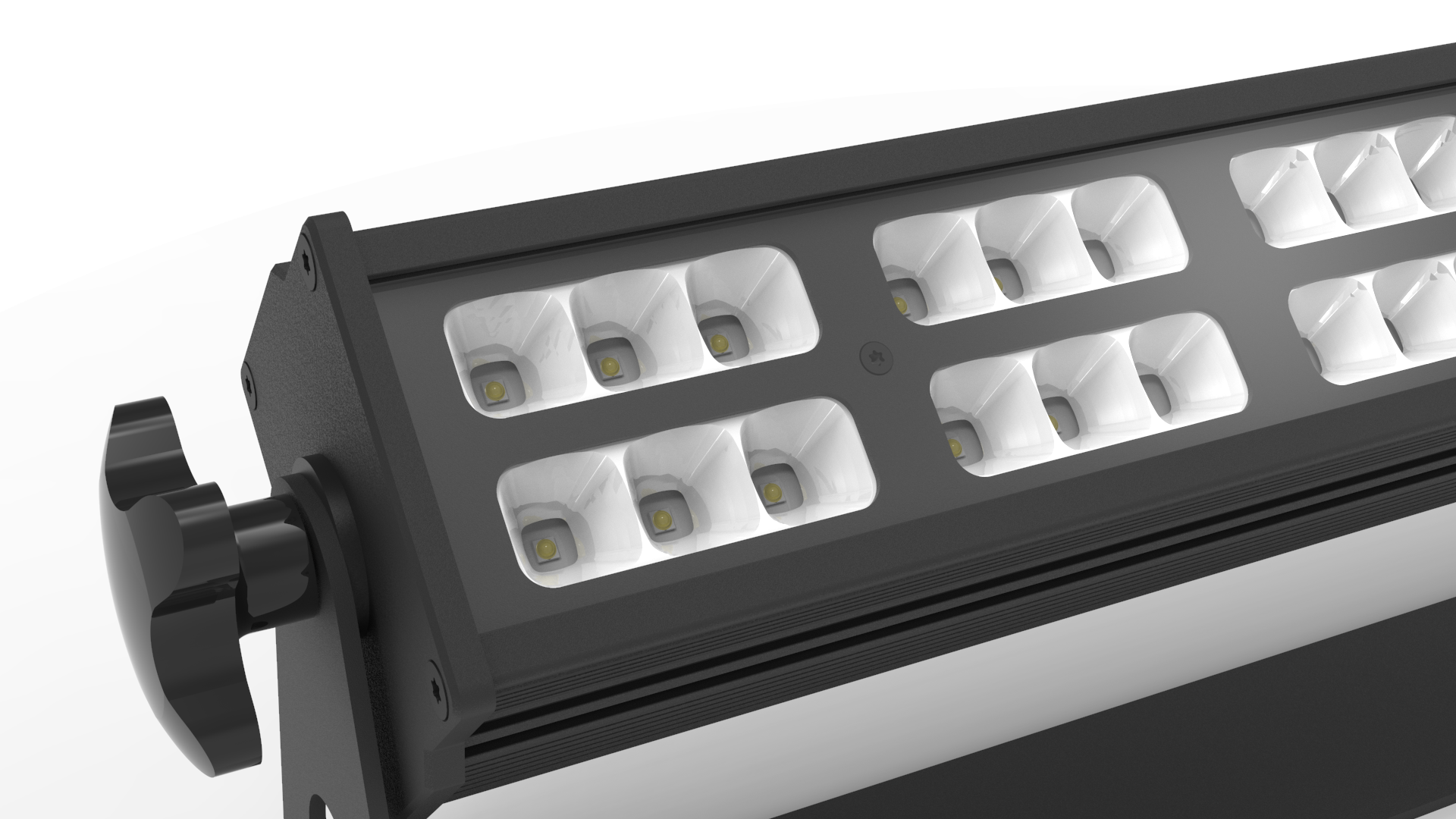

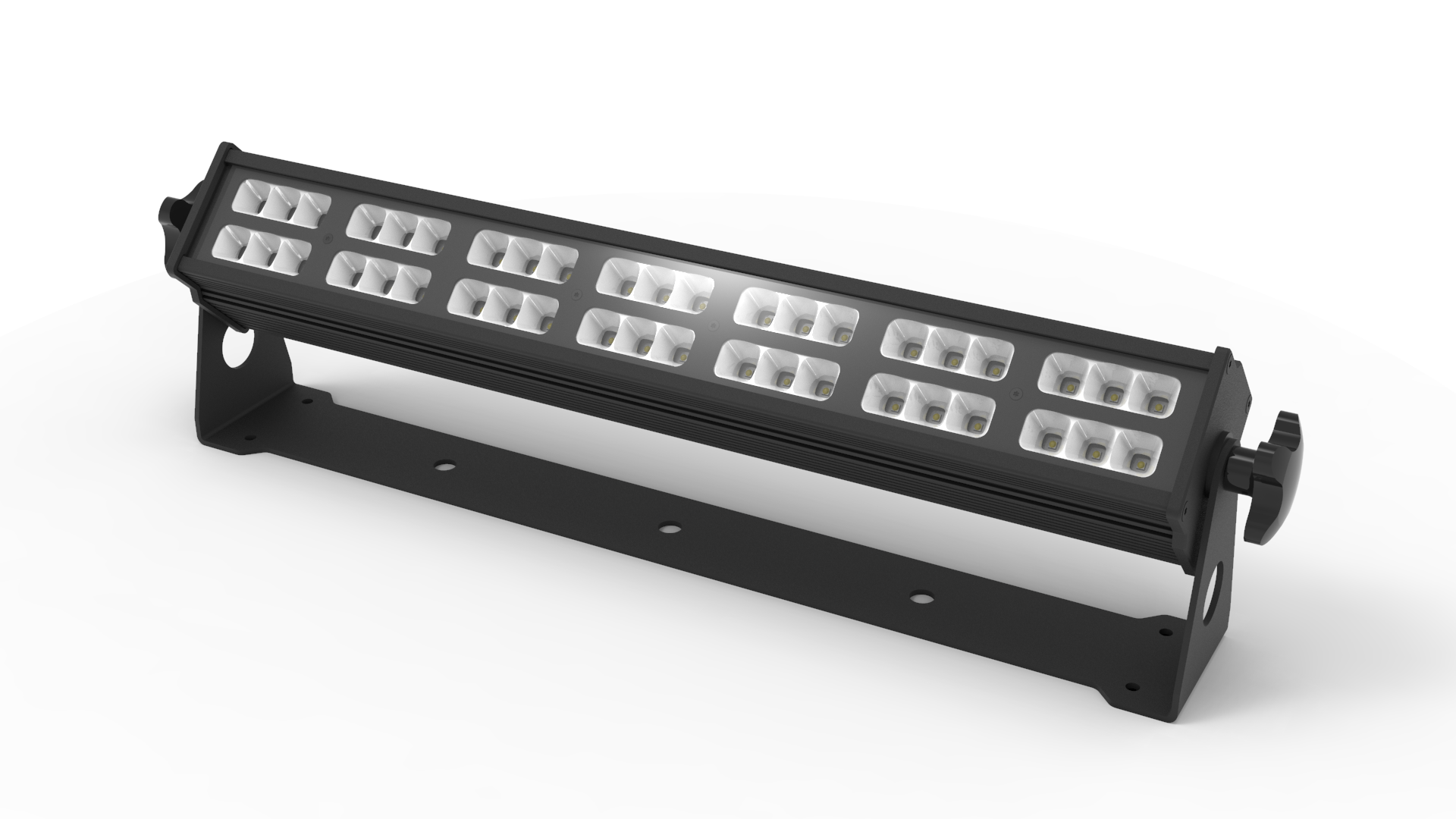

LED BAR B4204
- Housing cooling LED Bar Lighting.
- The cooling fan can be control by DMX-512 ON or OFF. You can turn ON the fan to get more powerful output. Also can turn OFF the fan to make lower noise. * The output power always control by the driver or LED chip’s temperature.
- 2x temperature sensor. One is checking LED chips, another one is checking the LED drivers. Power output level depends LED and driver’s temperature.
- RDM protocol already support to change DMX Address / setup channel mode / Device name ect.
- All output dimming value already calibration.
-

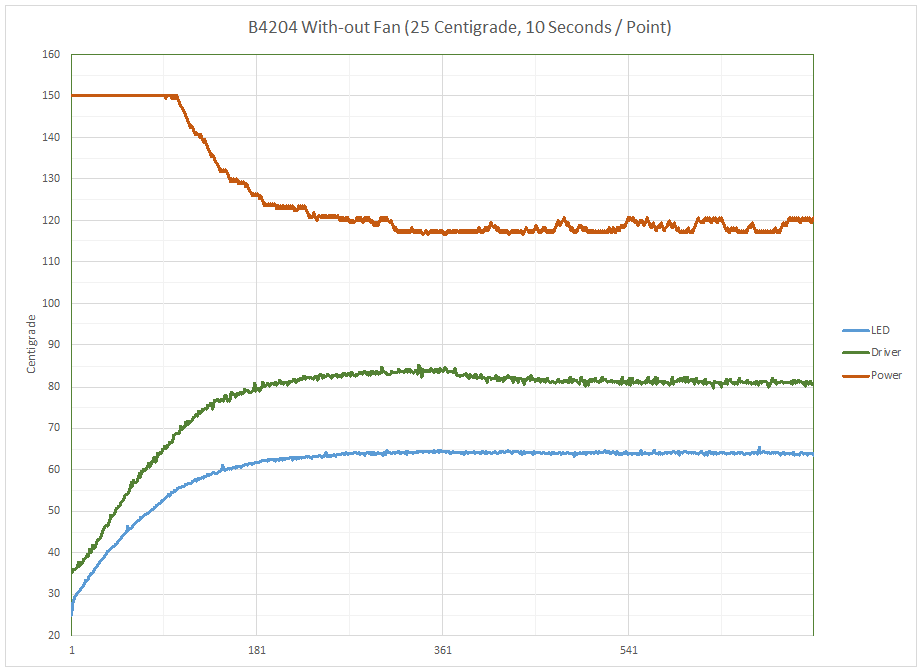

- Power & Tmp With-out Fan
-

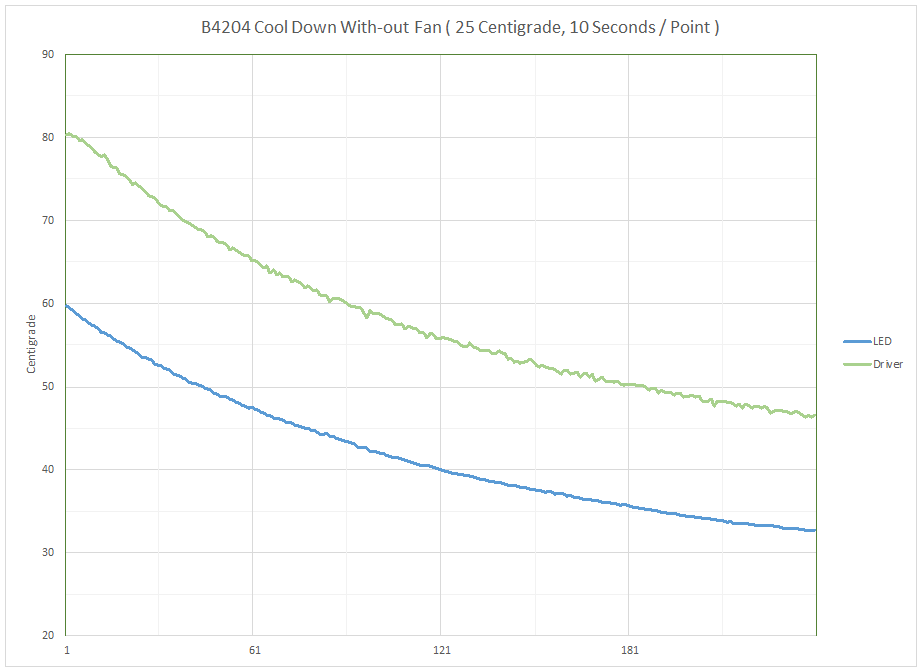

- Cool Down With-out Fan
- B4204 Flyer.pdf
- B4204 User Manual.pdf
DMX-Controlled Cooling & Two-Sensor Thermal Management
The B4204 carries a four-LED RGBW engine in an aluminum housing built around active cooling. A brushless cooling fan is wired into the DMX-512 chain as its own channel, so the operator can switch the fan ON when peak output is required (full-stage wash, broadcast key light, exterior daytime fill) and OFF whenever silence matters (recording sessions, theatre dialogue scenes, live podcasts). Two NTC temperature sensors are placed on the LED carrier PCB and on the rear heat-sink: when the on-board MCU sees the LED-side reading climb past the safety window, it pre-emptively curves down LED drive current and triggers fan boost — protecting both LED phosphor and driver IC long before thermal runaway. RDM is supported, so each fixture’s address, mode and live temperature can be read back from any RDM-compatible console without climbing the truss.
Where the B4204 Fits
The B4204 is sized for indoor mid-power applications — small to mid theatres, broadcast and streaming studios, houses of worship, school auditoriums, club back-bars and themed retail. Its DMX-controlled cooling makes it one of the few stage bar lights that can switch silently between “loud-stage / lots-of-light” and “quiet-set / dim-and-cinematic” modes from the same lighting cue — no fan-mode dipswitch, no manual reach.
Packaging & Shipping (per piece, indicative)
Carton: 4 pcs / master export carton · single-fixture inner box: ~720 × 90 × 110 mm. Net weight: ~2.6 kg per fixture · gross weight: ~12 kg per master carton. Standard accessories: power-out hanging clamp, safety wire, omega-bracket, English manual, DMX-personality quick-card. Custom-printed cartons and OEM logo packaging available from 50 pcs upwards. Shipping ex-works Foshan, China — air, sea and DDP options on request.
