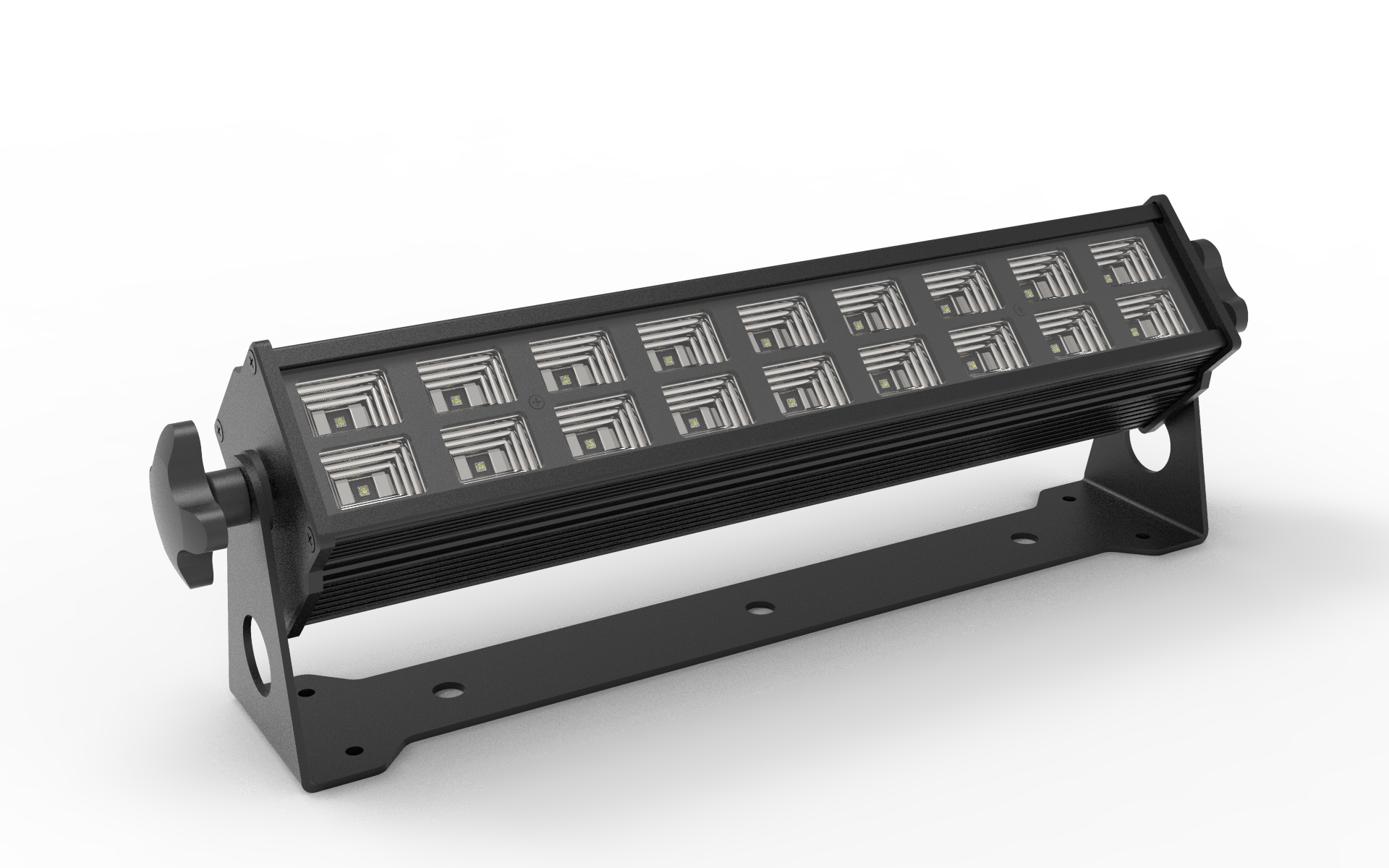

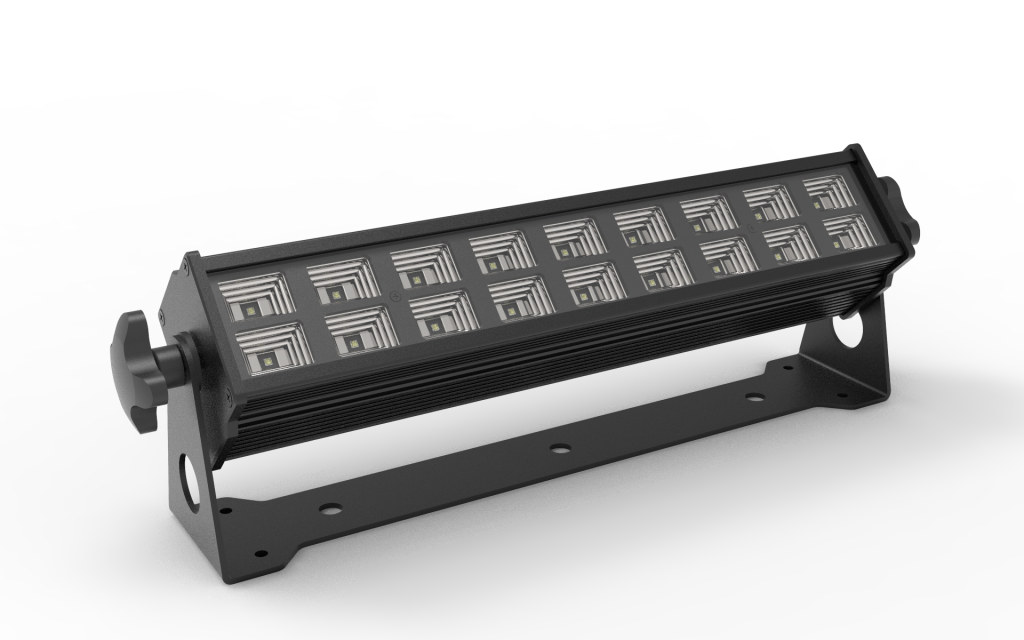

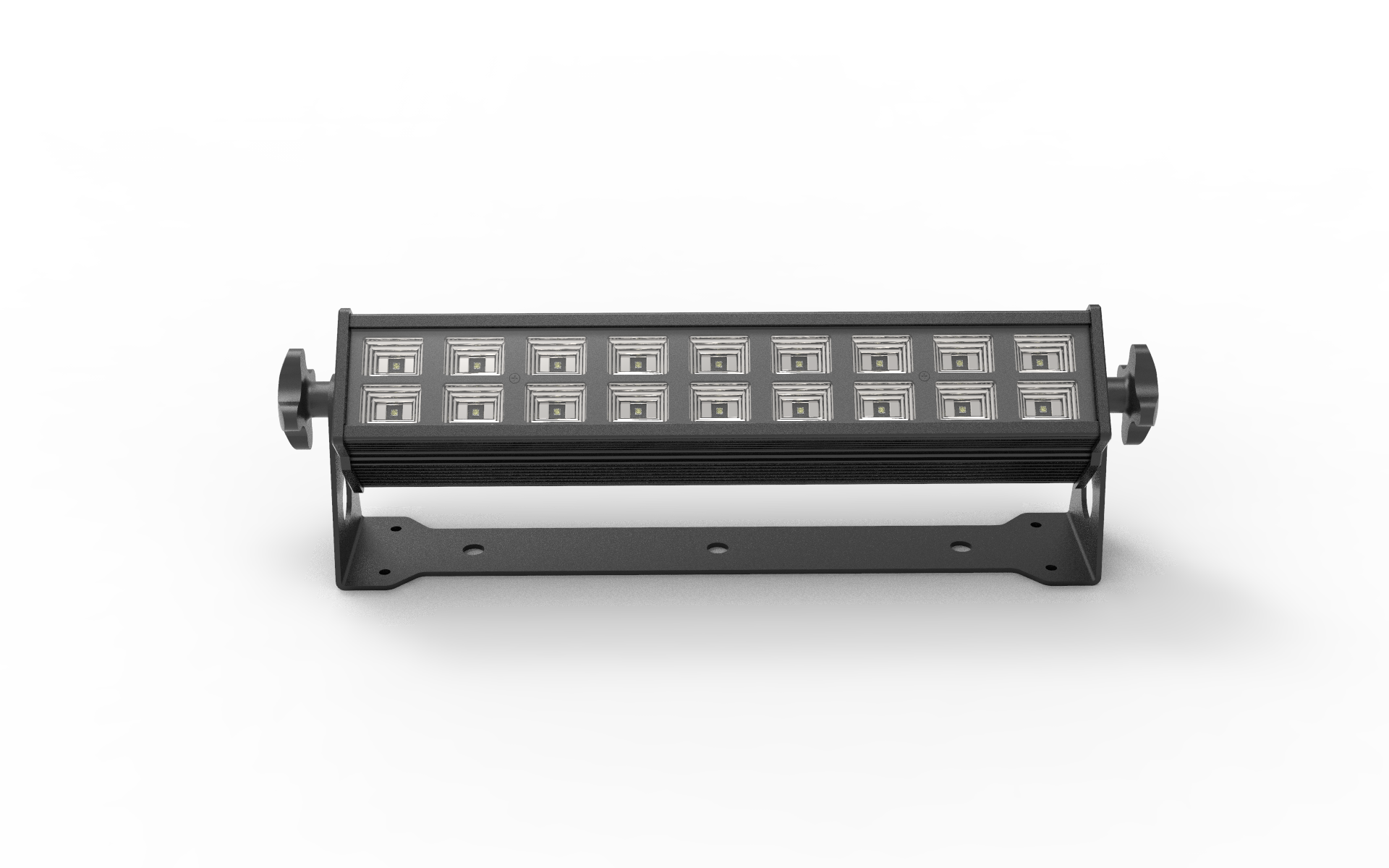

B18xUV — Professional 75W LED UV Bar Light

Transform any room into a glowing, immersive experience. The B18xUV LED UV Bar Light is a professional-grade 75W blacklight designed to make fluorescent paint, neon décor, white fabrics and UV-reactive materials glow brilliantly — whether you are hosting a party at home, setting up a photo booth, or lighting an art installation.

Why Choose the B18xUV?

🟣

395 nm UV-A wavelength

395 nm UV-A for compatible fluorescent materials; avoid direct viewing and follow the user manual.

⚡

18 × 3 W high-output LEDs

18 × 3 W describes the LED configuration; 75 W is the fixture’s maximum power consumption.

📐

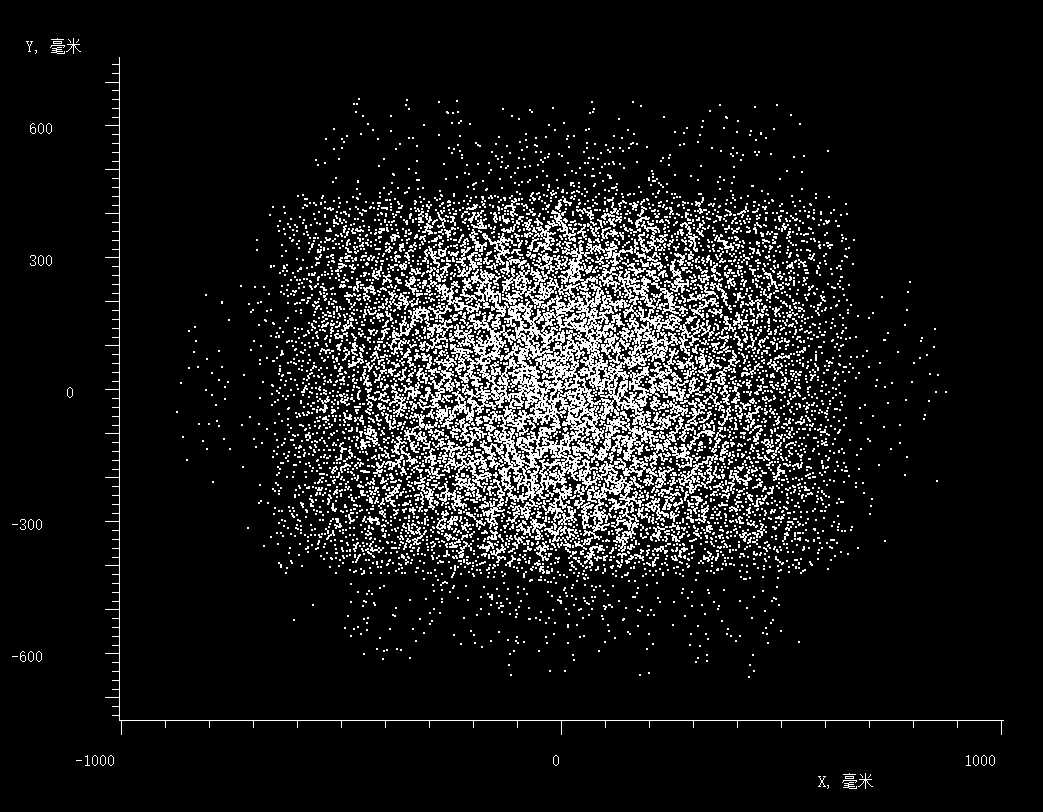

Even 100° × 70° coverage

Reflector optics provide a broad rectangular wash.

🌡

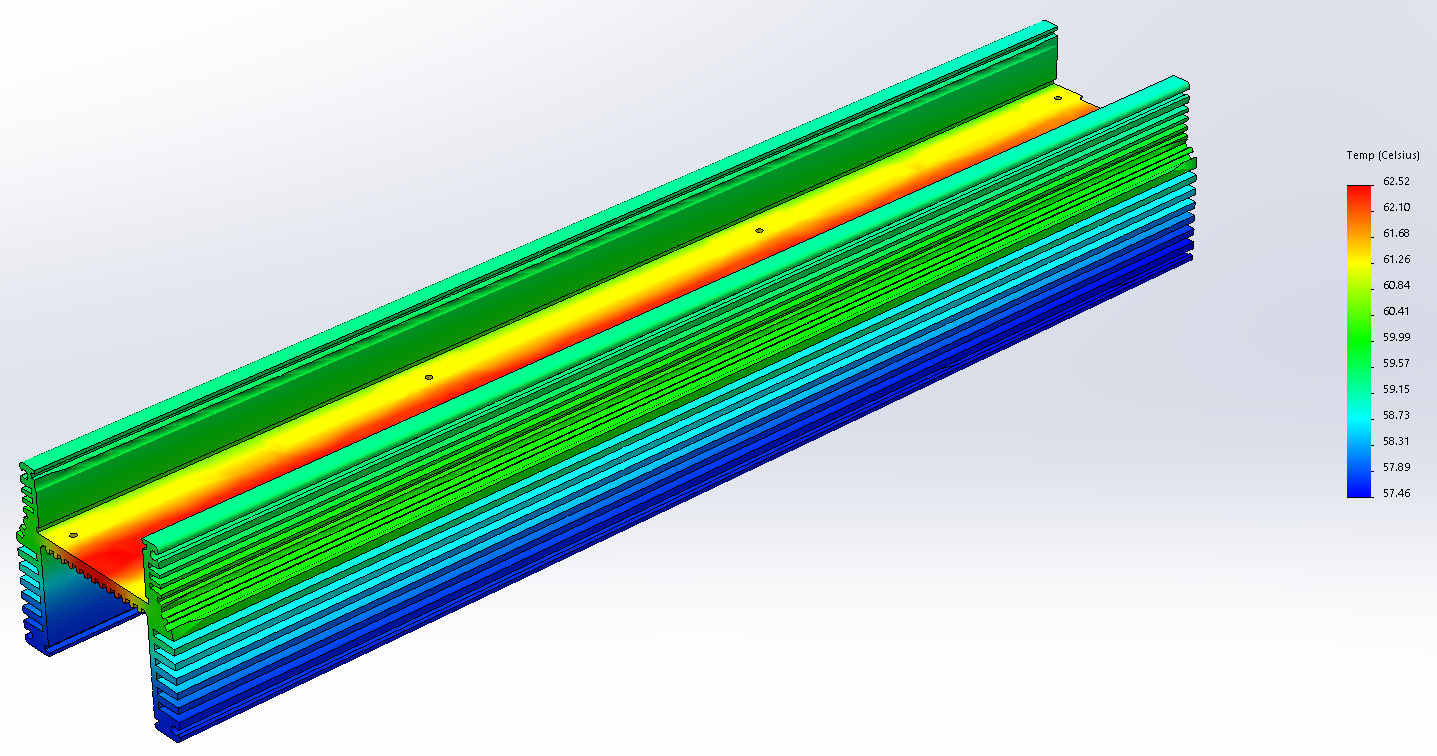

Quiet, heat-managed design

Optimized thermal body for long, reliable runs at events and installations.

🔌

Plug-and-play

Universal AC 90–240 V input and rugged housing for indoor venues.

Perfect For Halloween, Glow Parties & Art Installations

🎃

Halloween & Glow Parties

🎨

UV Body-Paint & Photo Booths

🪩

Clubs, Lounges & Escape Rooms

🏛

Museums & Themed Attractions

🎭

Theatre & Immersive Stages

Specifications

Specification	Value
Model	B18xUV
Power Input	AC 90–240 V, 50–60 Hz ±10%
Max Power Consumption	75 W (max.)
LED Source	18 × 3 W UV LEDs
UV Wavelength	395 nm (UV-A)
Drive Current	Under 700 mA
LED Lifetime	Approx. 50,000 hours

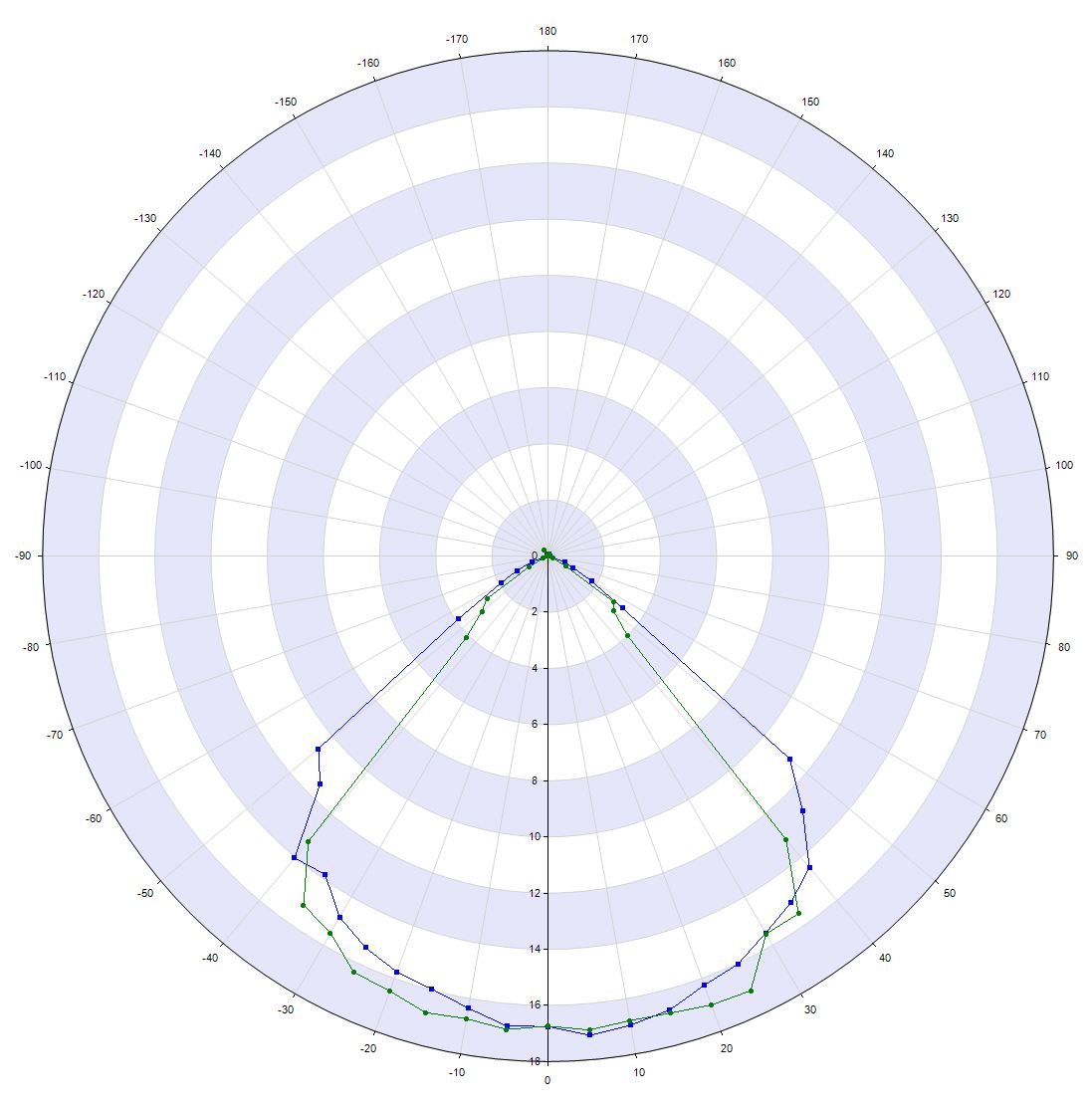

Projection Angle	100° × 70° (rectangular)
Beam Pattern	Rectangular wash
Dimming	0–100%
Strobe Rate	1–20 Hz (synchronised or random)
Control Protocol	DMX-512, RDM
Channel Modes	1 / 3 / 8 channels (selectable from the LCD menu)
DMX Address Range	1–508
Operating Modes	Static / Auto / DMX-512
Connectors	XLR IN/OUT, PowerCon IN/OUT
Cooling	Fan (DMX-controllable) plus thermal radiation; 2 × temperature sensor
Over-temperature Protection	65 °C
Operating Temperature	-10 °C to +45 °C
IP Rating	IP20 (indoor use only)
Housing	Aluminium, black powder coating
Dimensions	483 × 88 × 140 mm
Weight	2.6 kg
Intended Use	Indoor venues, parties, art displays

Choosing UV-Reactive Materials

The B18xUV uses 395 nm UV-A LEDs. Test paints, fabrics and décor with the actual fixture before installation to check the fluorescent effect you need. Its 18 × 3 W LED configuration, 75 W maximum power consumption and 100° × 70° rectangular wash describe different aspects of the product; the electrical ratings do not specify measured UV radiant output.

Follow the user manual, avoid looking directly into the LEDs, and use this IP20 fixture indoors.

Frequently Asked Questions

What precautions are needed when using this UV light?+

The B18xUV is an IP20 indoor fixture. Do not look directly into the LEDs. Follow the supplied user manual for installation, ventilation and electrical safety, and disconnect mains power before maintenance. A 395 nm wavelength specification is not an eye-safety certification.

How large an area does one bar cover?+

The B18xUV has a 100° × 70° rectangular wash. Useful coverage depends on mounting distance, fixture placement and the UV-reactive material. Test the actual surfaces at the intended mounting position before choosing the number of fixtures.

Can I use it outdoors?+

The B18xUV is rated IP20 and is intended for indoor use. Choose a fixture with a suitable weather-protection rating for outdoor installations.

Does it need a controller?+

No. Simply plug it into an AC 90–240 V outlet and it turns on instantly. The bar runs standalone in Static or Auto mode straight from its LCD menu, and DMX-512 and RDM are built in, so you can also drive it from any lighting console in 1, 3 or 8-channel mode at DMX address 1–508.

What will glow under the light?+

Neon/UV paint, white fabrics, teeth, highlighter markings, fluorescent posters, tonic water and most “blacklight reactive” décor will glow vividly. Darker colours and most everyday materials will stay dim.

Where can I see it in action?+

The B18xUV is used in parks, art salons, museums and art galleries around the world. Contact us for project photos or a custom lighting plan.
