2K DMX HDMI Video Player V82K

Price range: $399.00 through $453.00

2K DMX HDMI Video Player V82K — Standalone 2560×1440 video trigger from any DMX-512 console. SD card storage 64/128/256GB. From US$399.

SKU: V82K Category:

Description

V82K — Standalone 2K DMX HDMI Video Player

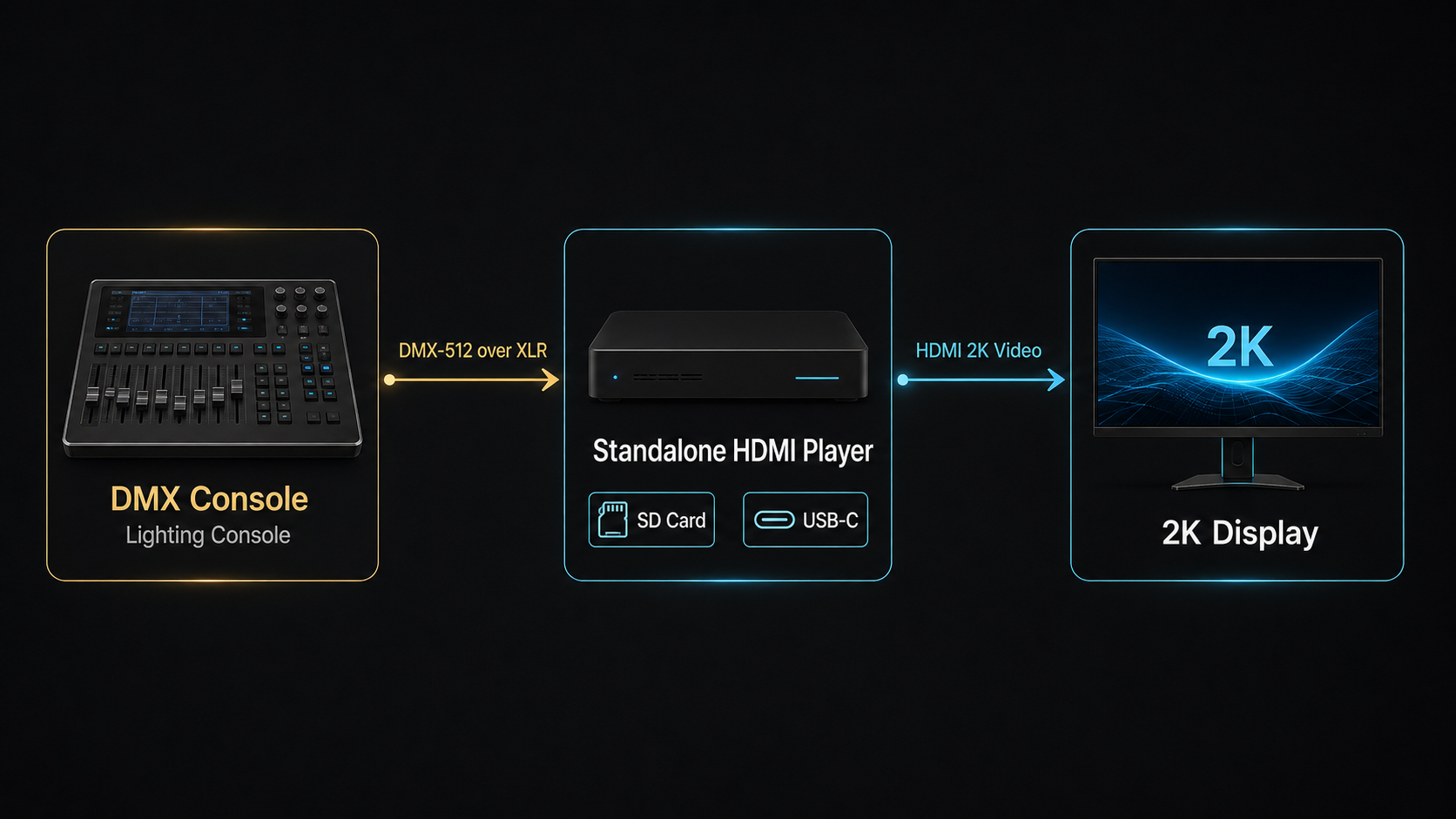

The 2K (2560×1440) successor to the V3 standalone HDMI video player. Trigger high-resolution video clips from any DMX-512 lighting console without a PC. SD-card storage up to 256GB, HDMI output, XLR + RJ45 DMX input, LCD address setup, audio output.

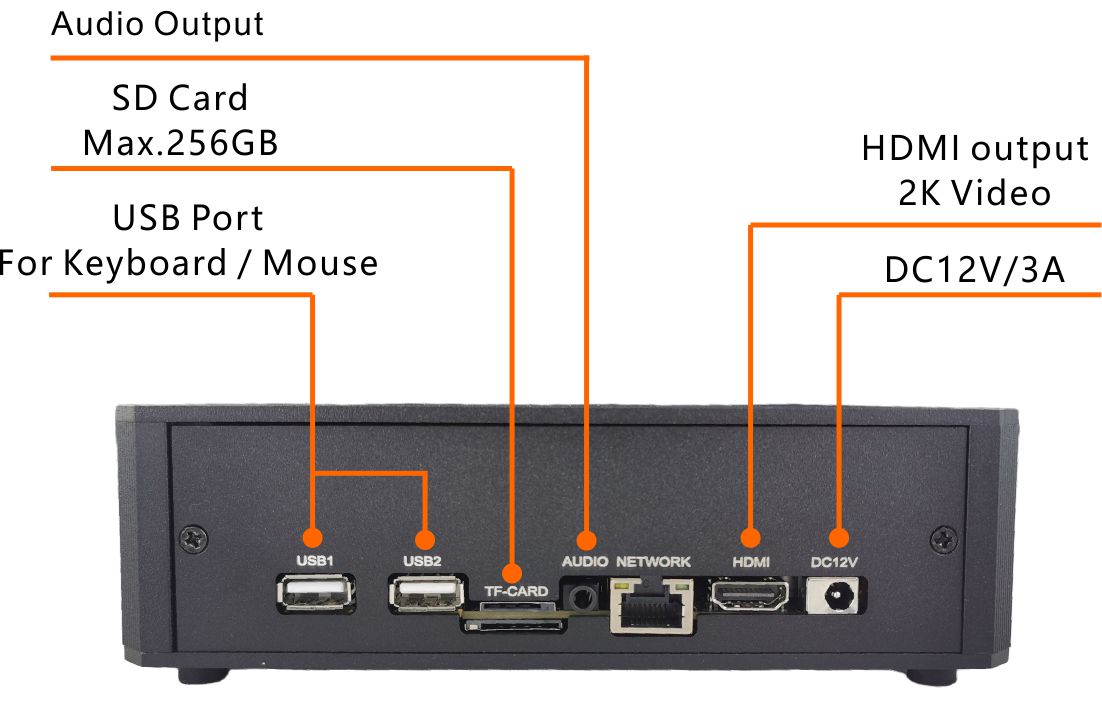

  • 2560 × 1440 (2K) HDMI output — sharper than V3 (1080p)
  • DMX-512 control — XLR-3 in/out + RJ45 DMX
  • SD card storage — 64GB / 128GB / 256GB factory-fitted
  • On-board LCD + UP/DOWN buttons — set DMX address without a PC
  • Stereo audio output — sync audio with triggered video
  • USB-A x2 — keyboard/mouse for advanced config
  • Power — DC 12V / 3A

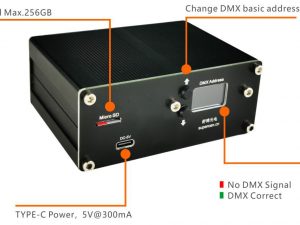

See the full V82K product page for application case studies (stage shows, theme parks, exhibitions, broadcast), or compare against the 1080p V3.

Additional information

Weight N/A
Dimensions N/A
Storage

64GB, 128GB, 256GB

Downloads & Documentation

  • User Manual
    Quick-start + full reference (PDF)
    Coming soon
  • Dimension Drawing
    Mechanical dimensions (PDF)
    Coming soon
  • CAD File
    2D drawing — DXF / DWG for system integration
    Coming soon
  • 3D Model
    STEP / IGES / STL / OBJ for visualization & engineering
    Coming soon
  • Firmware
    Latest firmware update
    Coming soon
  • PC Tools
    Media converter / SD-card prep / utilities
    Coming soon

Need a different file format or older firmware? Contact our engineering team.
