Description
🎬Try the Online HDMI V3 DMX Simulator→
Live 2-channel DMX-512 preview of the HDMI V3 — CH1 selects video file index 1–255, CH2 toggles loop / blackout
Standalone DMX-512 HDMI Video Trigger
The DMX HDMI Video Player V3 plays full-HD 1080p video on cue from any DMX-512 console — no laptop, no media server, no software stack. Stand it next to your stage rack, route HDMI to any screen, and trigger clips live from your lighting desk.
Key Specifications
- Video Output: HDMI 1080p Full-HD (1920×1080)
- Storage: Micro SD card slot — max 256GB (choose at checkout: 64GB / 128GB / 256GB)
- Trigger Protocol: DMX-512
- Audio output: HDMI embedded audio plus analog 3.5 mm TRS stereo
- Channel Footprint: 2 DMX channels (clip select, repeat mode)
- Boot Time: < 8 seconds cold start
- Video Codec: H.264 / MPEG-4
- Power: USB Type-C, 5 V / 300 mA
- Dimensions: 97 × 73.2 × 40 mm (device)
- Shipping Weight: 0.35 kg per retail pack (24 × 17 × 5.6 cm)
Why V3
- On-cue playback: Frame-accurate trigger from DMX console without any laptop in the signal chain.
- Touring-grade: Aluminum chassis, road-tested at clubs, theatres and festival main stages worldwide.
- Standalone: No media-server software and no show-control PC — just plug in HDMI and trigger.
- OEM-ready: Custom firmware, branding and channel mapping available for system integrators.
Compatible Consoles
Works with any console that outputs standard DMX-512, including Art-Net or sACN sources fed through a bridge that converts to DMX-512.

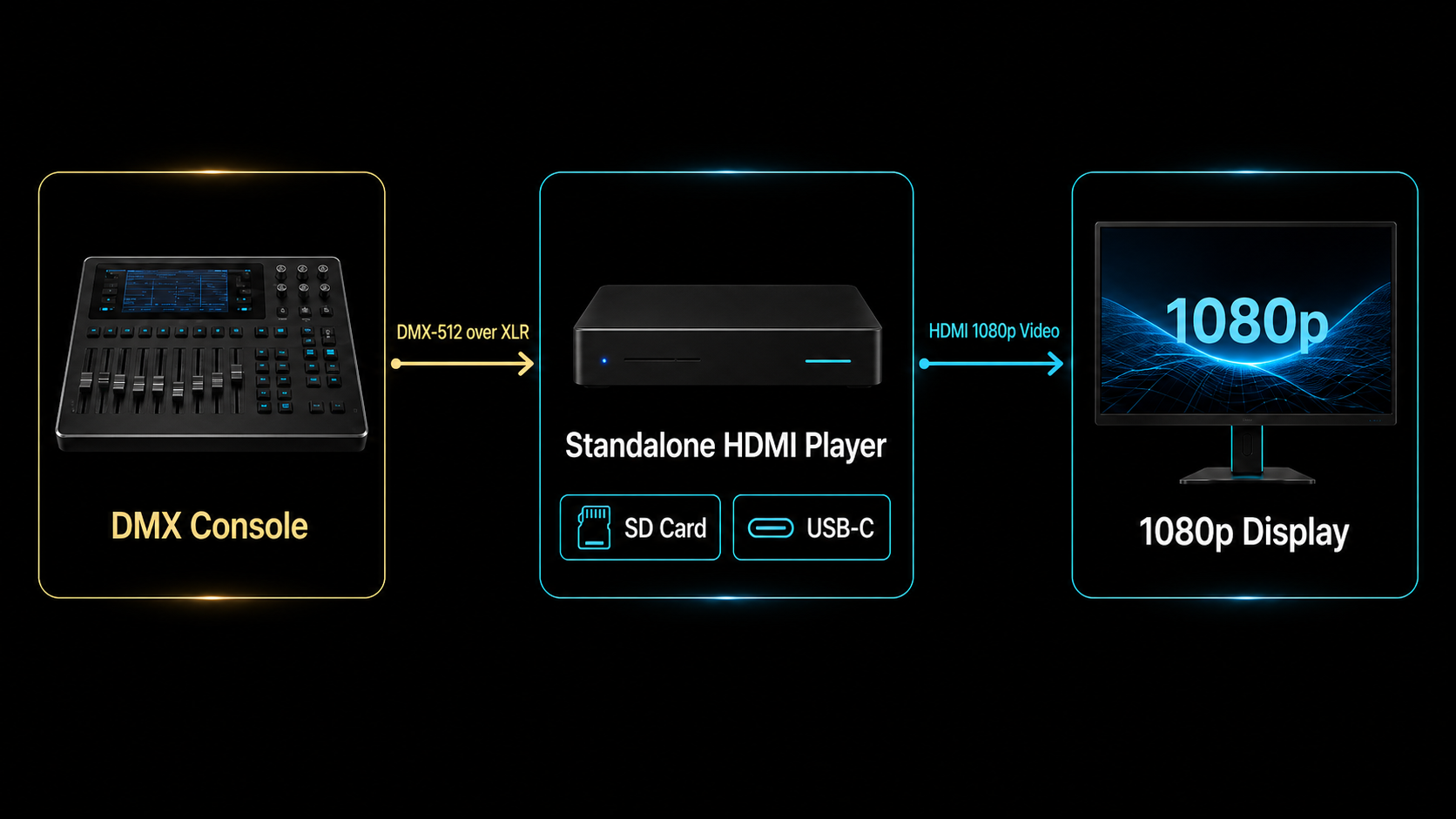

Full technical sheet, signal-flow diagram and quote request form available at our V3 product page.
