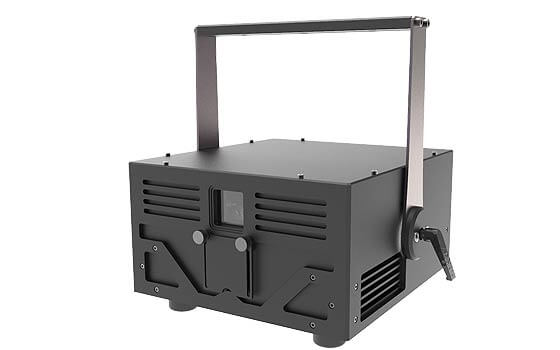

Stage Laser Light RGB 4W

Club laser adopts fiber laser source for red to get sharp beam!!

Discontinued — no longer in production. The Stage Laser X4 (My Lite X4) is not available for new orders. See the current My Lite X6, X8, X10 and X20, or contact us with any questions.

This laser projector is specialized for

 laser show or night clubs use in door.

The Digital Drivers of the laser module & scanner systerm&cooling system all designed by SUPERCAN! Better white balance, More steady, More brightness, More safty and Longer life span...

Red Laser: 638nm@800mW

Green Laser:525nm@1600mW

Blue Laser: 450nm@1800mW

Blanking: Analog 0~5V, up to 100KHz

With ESD / temperature / current proection.

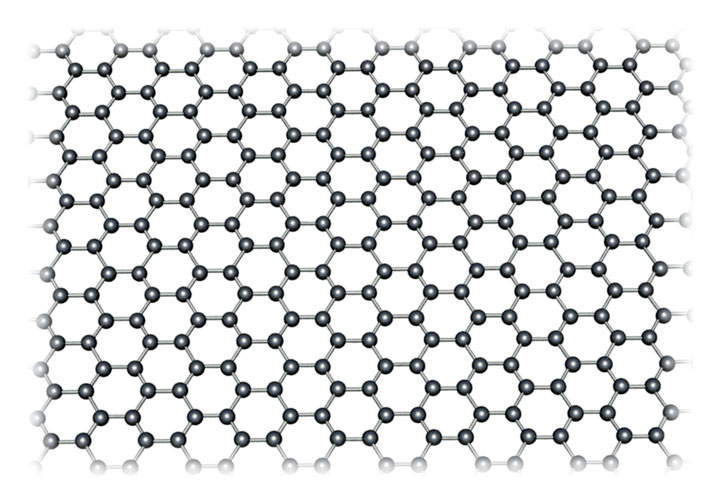

Graphite Cooling

Graphite Cooling​

  • Thermal conductivity is much better than grease.
  • Never needs to replace.
  • No pollution for the Optical.

High Quality Fan

  • Long life time Ball Bearing Fan.
  • Fan speed control by realtime temperature.
  • Fan rotat fail feedback.
  • Lower heat.
  • Lower noise.

Specifications​

Power requirements:

190~240V/50Hz (±5%)

Consumption:

Max.200W (EPP-200-24)

Total optical output:

4W

Laser Module:

638nm 0.8W / 525nm 1.6W / 450nm 1.8W

Beam diameter:

4.5×4.5mm

Divergence:

<0.8mrad

Modulation:

0-5V analog, up to 100kHz TTL

Scanner:

DT-30 30Kpps Max.60Deg

Input:

ILDA IN DB25 male

Output:

ILDA OUT DB25 female

Operation temperature:

-10℃ to 35℃

Dimension:

281*268*173mm

Package Dimension:

386*440*265mm(Carton)

Flight-Case Dimension:

*386*440*265mm

Weight:

8.2Kg

Weight:

*10Kg With Carton, 23Kg With Flight-case

Download Informations

Frequently asked questions

How is the 4 W output made up?

The X4 combines three diode modules: 638 nm red at 0.8 W, 525 nm green at 1.6 W and 450 nm blue at 1.8 W.

What control interface does it use?

ILDA IN on a DB25 male connector and ILDA OUT on a DB25 female connector, with 0–5 V analog modulation up to 100 kHz.

What scanner is fitted?

A DT-30 scanner running at 30 kpps, with a maximum scan angle of 60 degrees.

Is the X4 for indoor use?

Yes. It is specified for indoor laser show and night club use, with an operating temperature range of -10 ℃ to 35 ℃.

What power does it need?

190–240 V / 50 Hz (±5%), drawing a maximum of 200 W.

How big and heavy is it?

The fixture measures 281 × 268 × 173 mm and weighs 8.2 kg. Packed in its carton it is 386 × 440 × 265 mm and 10 kg.
