NSW WP — Three-Port 100M Fixture Network Switch with FB4 Header

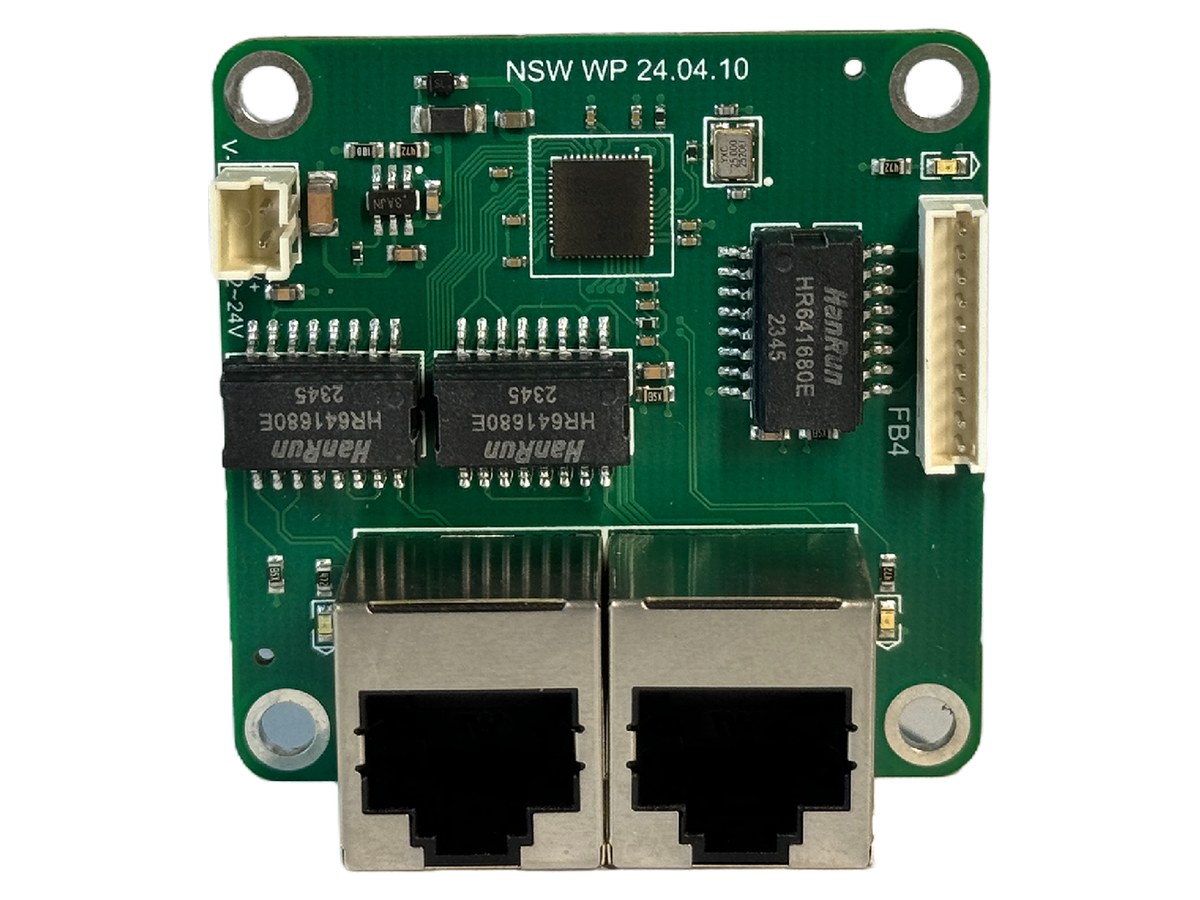

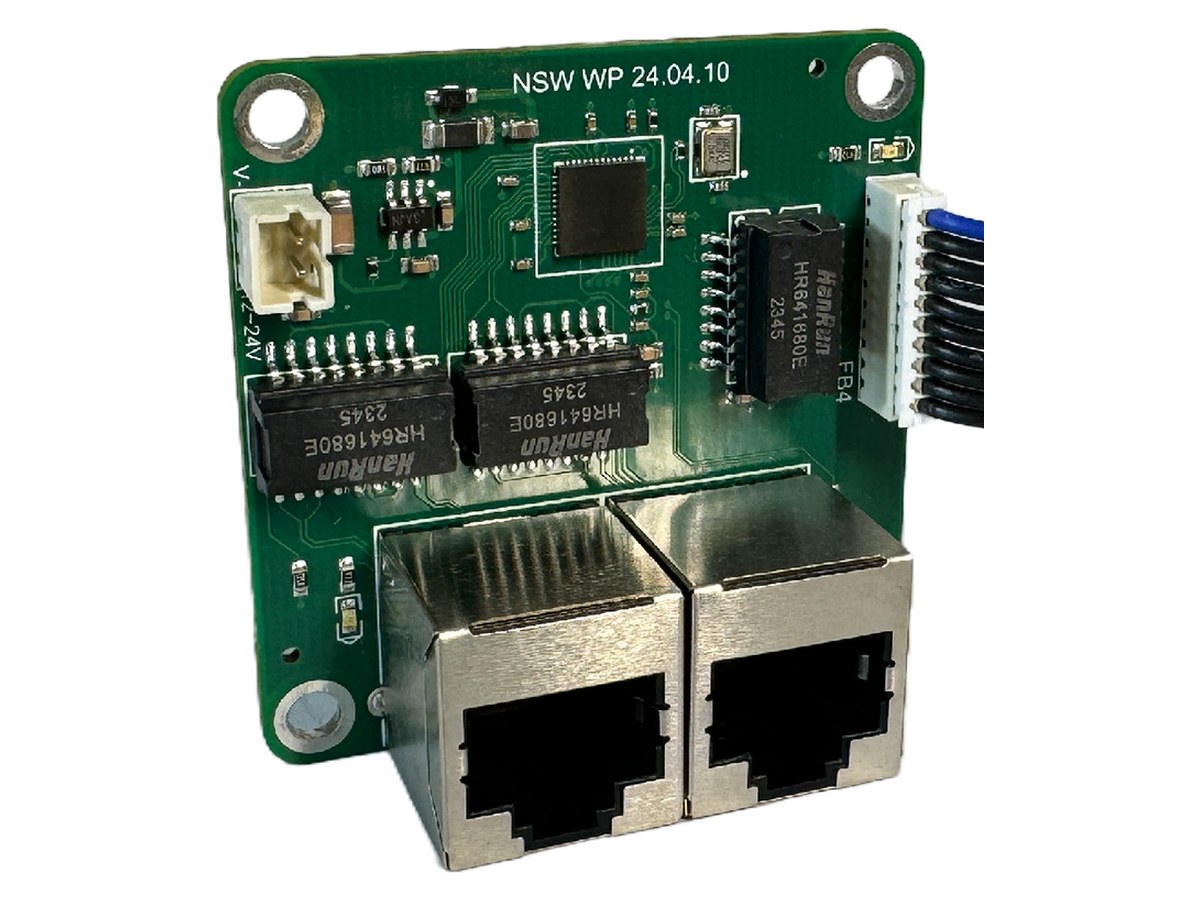

NSW WP is a 48 x 48 mm network switch board built into laser fixtures and custom lighting equipment. Two shielded RJ45 ports handle network in and through, and a third port is wired directly to the laser controller via the on-board FB4 ribbon header. Every board is bandwidth-tested before it leaves the factory.
Sold as a factory box of 16 boards — US$390.20 per box, US$24.39 per board. Boards ship in a die-cut foam tray, one board per cell.

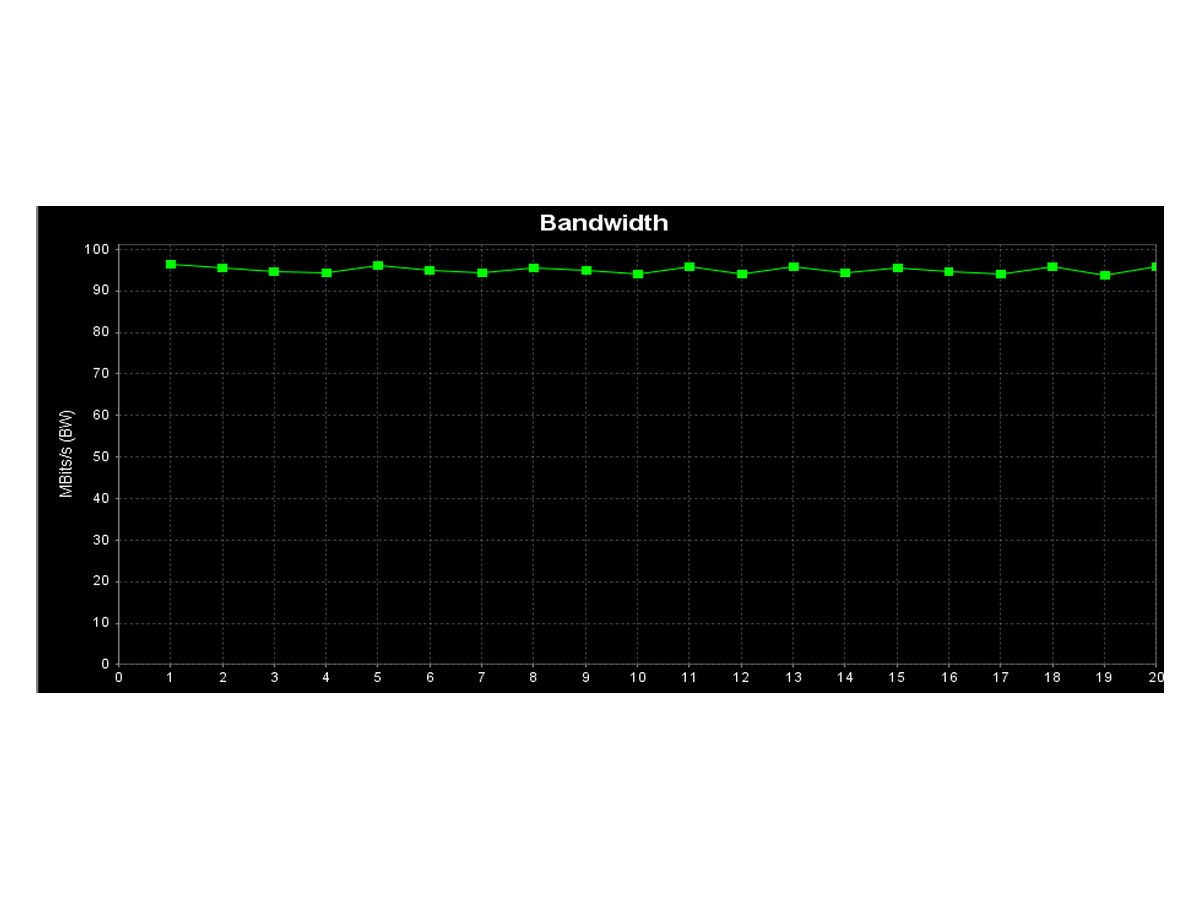

- Three 100M ports — 2x RJ45 plus 1x FB4; all three tested at full 100M line rate (93-96 Mbit/s sustained)
- Verified fixture count — factory testing confirms more than 12 FB4 laser fixtures on one chain
- PCBA size — 48 x 48 mm
- Mounting — 41 x 41 mm hole pitch, 3.5 mm hole diameter
- DC 12-24 V input — 2-pin power header
- Board revision — NSW WP 24.04.10
Datasheet: Download the NSW WP datasheet (PDF) — full specifications plus a dimensioned mechanical drawing taken from the production CAD file.

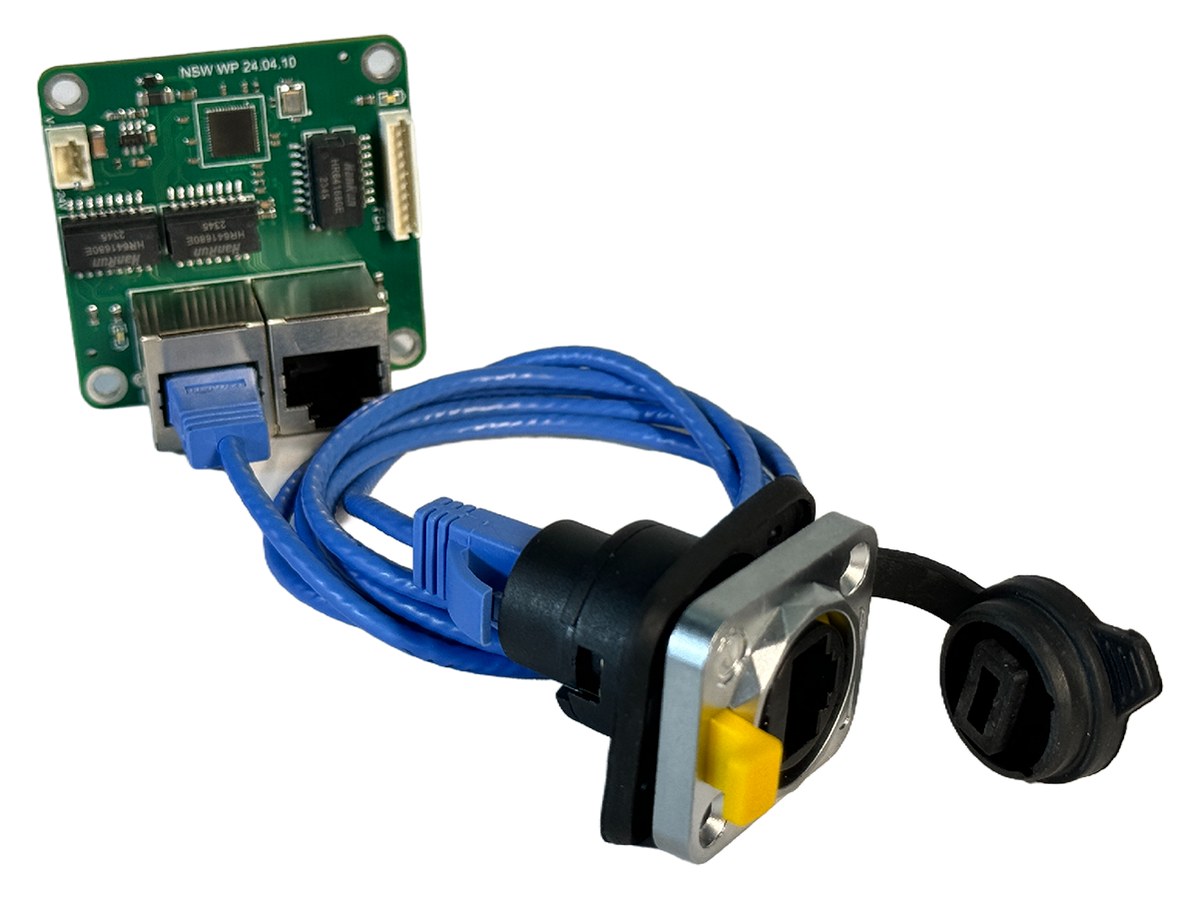

Use with waterproof panel connectors. For an outdoor fixture, the two RJ45 ports are patched to sealed panel-mount network connectors on the housing. The board itself is a bare PCBA and carries no IP rating on its own — the ingress rating comes from the enclosure and the panel connectors you fit.
See also the outdoor waterproof network port board, which wires to panel connectors through pigtail headers instead of RJ45 sockets.
