NWB300 3-Port 100M Network Switch Board, Locking Panel Connectors (Pack of 16)

$390.20

Free shipping on 2 or more eligible network-switch boxes in a qualifying package. Mixed eligible box models count; packages containing other products or single pieces do not qualify.

Box of 16 NWB300 boards — three-port 100M network switch with two locking panel-mount RJ45 connectors and a direct FB4 header. 43 x 49 mm, DC 12-24 V. Datasheet includes the panel cut-out pattern.

Pay with PayPal or credit / debit cardInternational orders ship by FedEx from Foshan, ChinaImport duties and taxes are paid by the buyer · Shipping policy

In-stock orders: processing within one week before dispatch. Carrier transit estimates start after dispatch; customs clearance may add time. Custom order schedules are confirmed in your quote. Shipping policy

SKU: NWB300-16 Category:

Description

NWB300 — Three-Port 100M Network Switch with Locking Panel Connectors

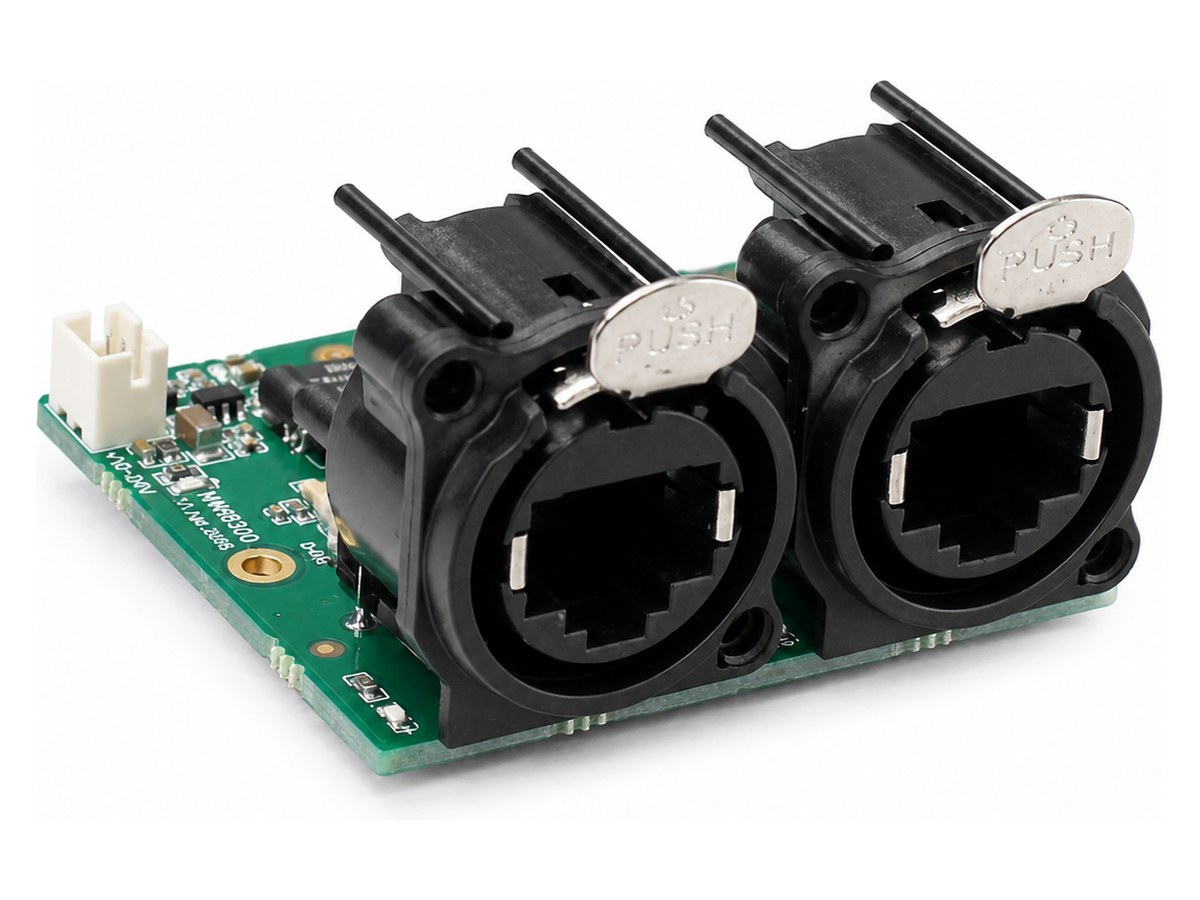

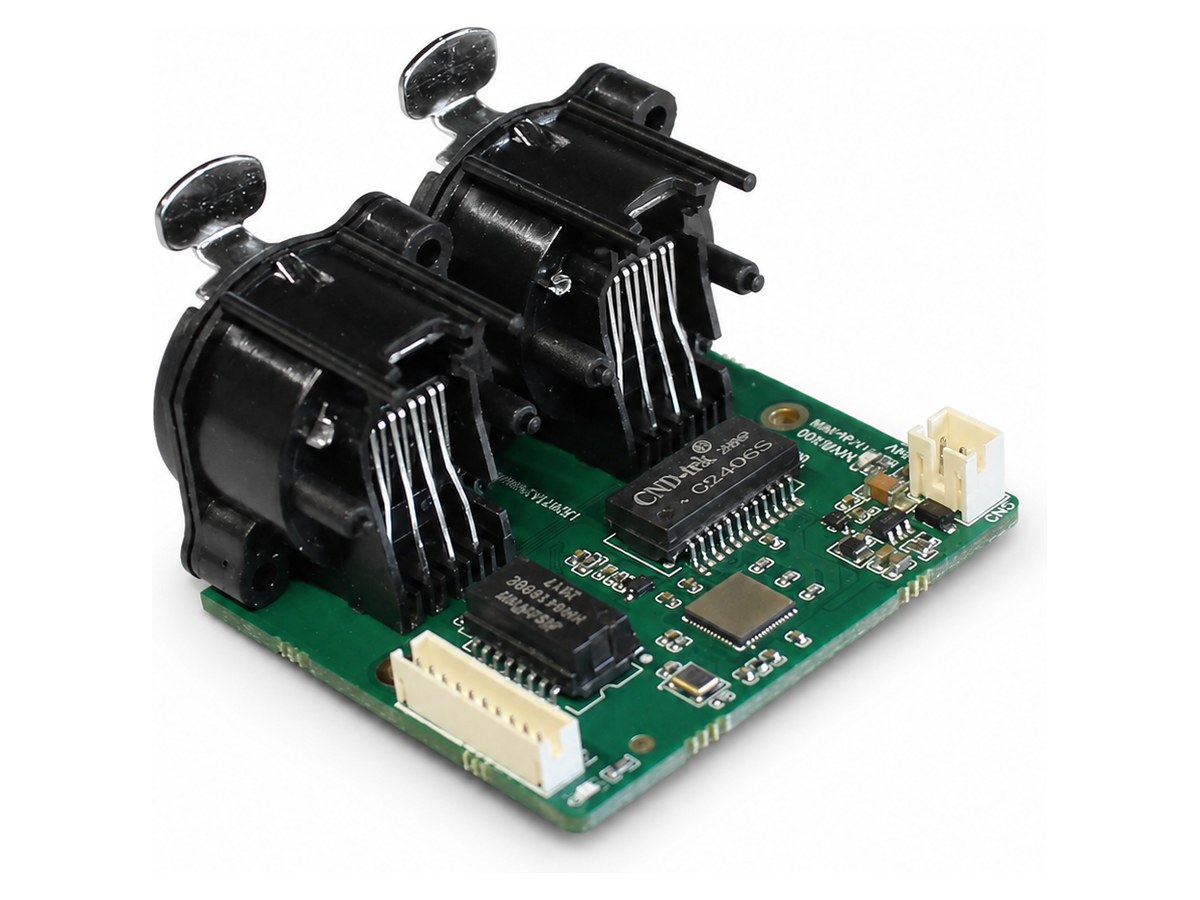

NWB300 puts the fixture network on two locking, panel-mount RJ45 connectors instead of bare PCB sockets for touring or rental fixtures. A third port is wired straight to the laser controller through the on-board FB4 ribbon header, eliminating the internal patch lead between the switch and controller.

Sold as a factory box of 16 boards. Boards ship in a die-cut foam tray, one board per cell.

  • Three 100M ports — 2 x locking panel-mount RJ45 plus 1 x FB4 ribbon header
  • Latching connectors — locking panel connectors for network connections
  • Through-panel mounting — two M2 holes (Ø2.10 mm, 42.00 mm apart) secure the far end of the board; verify panel and support for the application
  • DC 12-24 V input — 2-pin header, 2.00 mm pitch
  • Board — 43.0 x 49.0 mm, 1.6 mm thick, 6-layer
  • Four status LEDs
  • Project customization — mechanical layout, harness and connector position customisable

The datasheet includes a dimensioned mechanical drawing, connector-face elevation and panel cut-out pattern. Verify dimensions and connector fit before machining.

For fixtures that do not need locking connectors, the NSW WP board and the NSWPL module cover the same function with standard RJ45 sockets in a 48 x 48 mm footprint.
