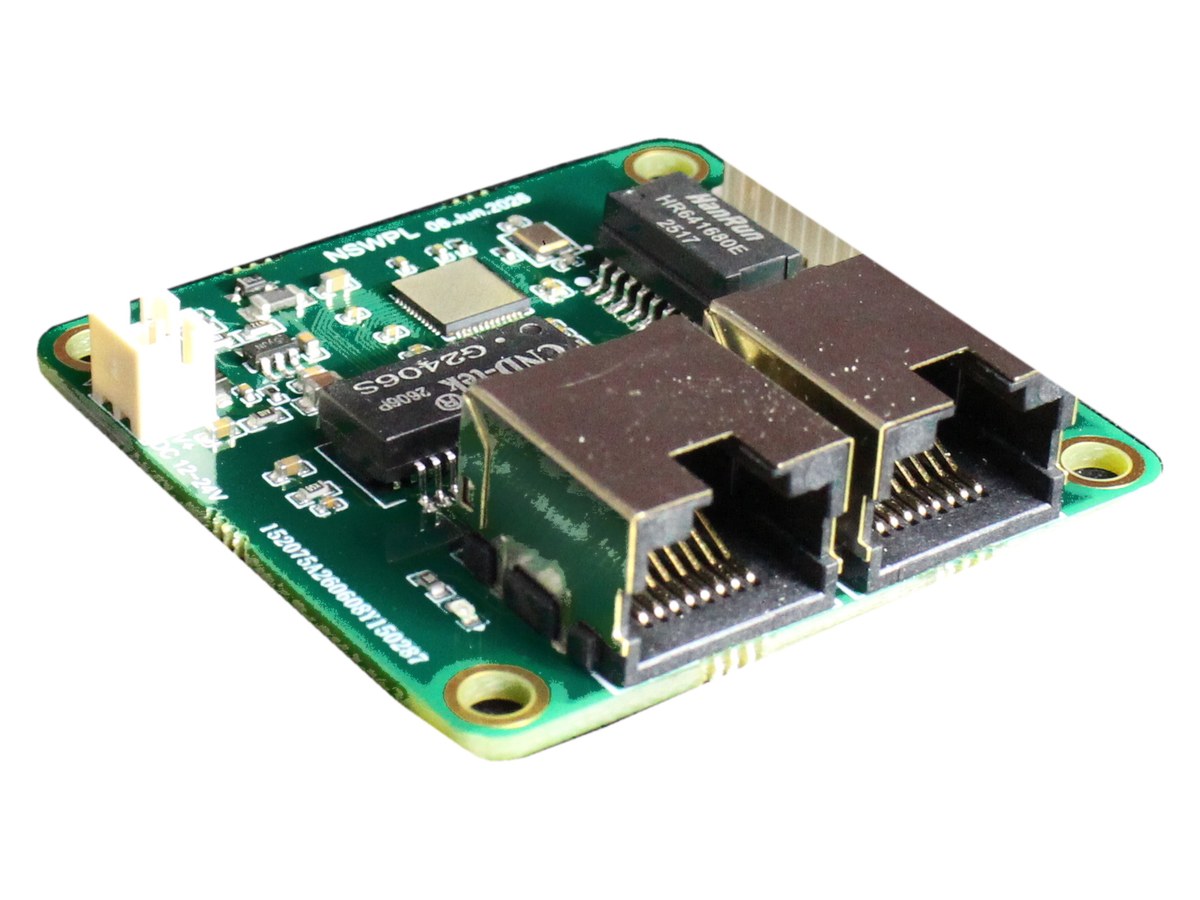

NSWPL — Three-Port 100M Fixture Network Switch Module with Direct FB4 Header
NSWPL is a compact internal network switch board for laser projectors, stage lighting fixtures and OEM show-control hardware, where a desktop network switch is too large or mechanically unsuitable. It gives a fixture two external RJ45 network ports for daisy-chain pass-through, plus a third port wired straight to the controller through a dedicated FB4 ribbon header, so no patch lead is needed inside the housing.
Sold as a factory box of 16 boards — US$390.20 per box, US$24.39 per board. Boards ship in a die-cut foam tray, one board per cell.
- Three 100M ports — 2x RJ45 plus 1x FB4

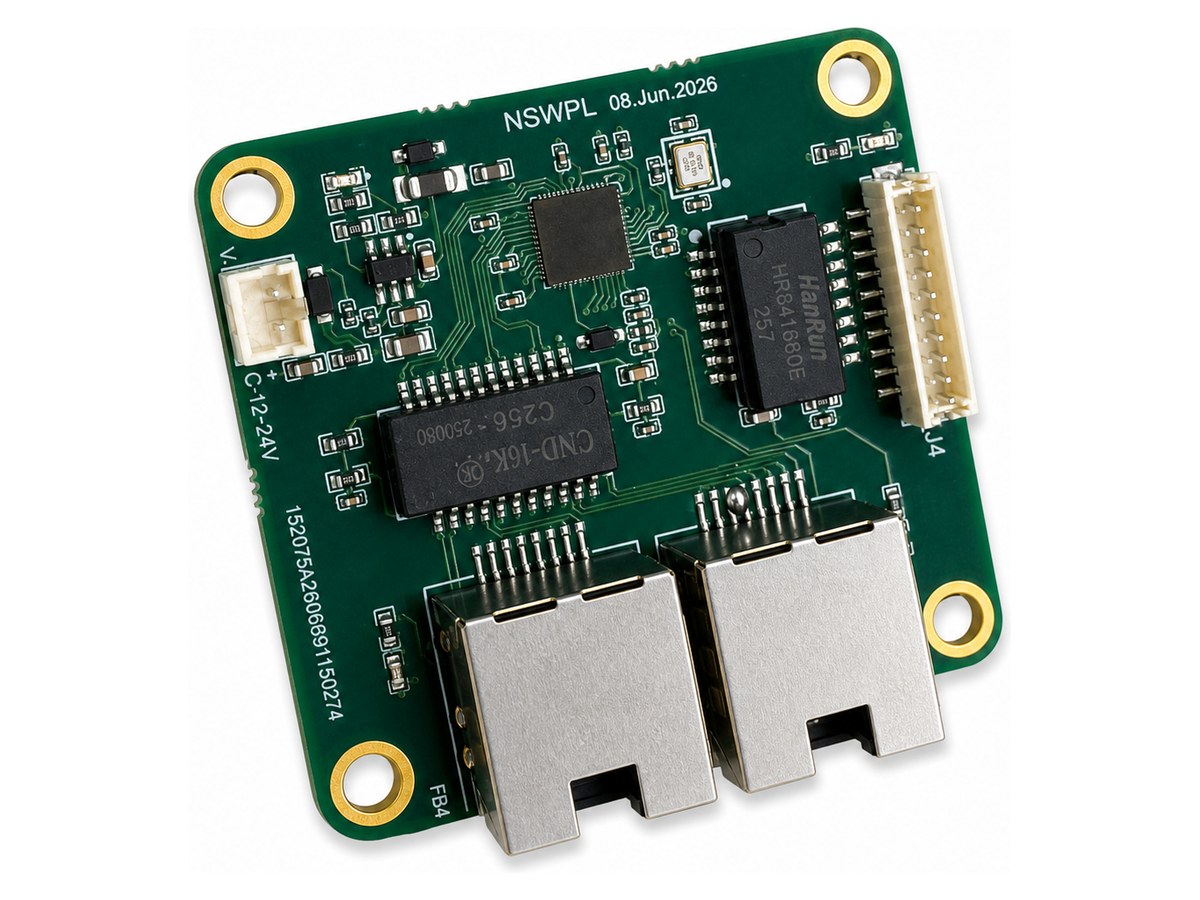

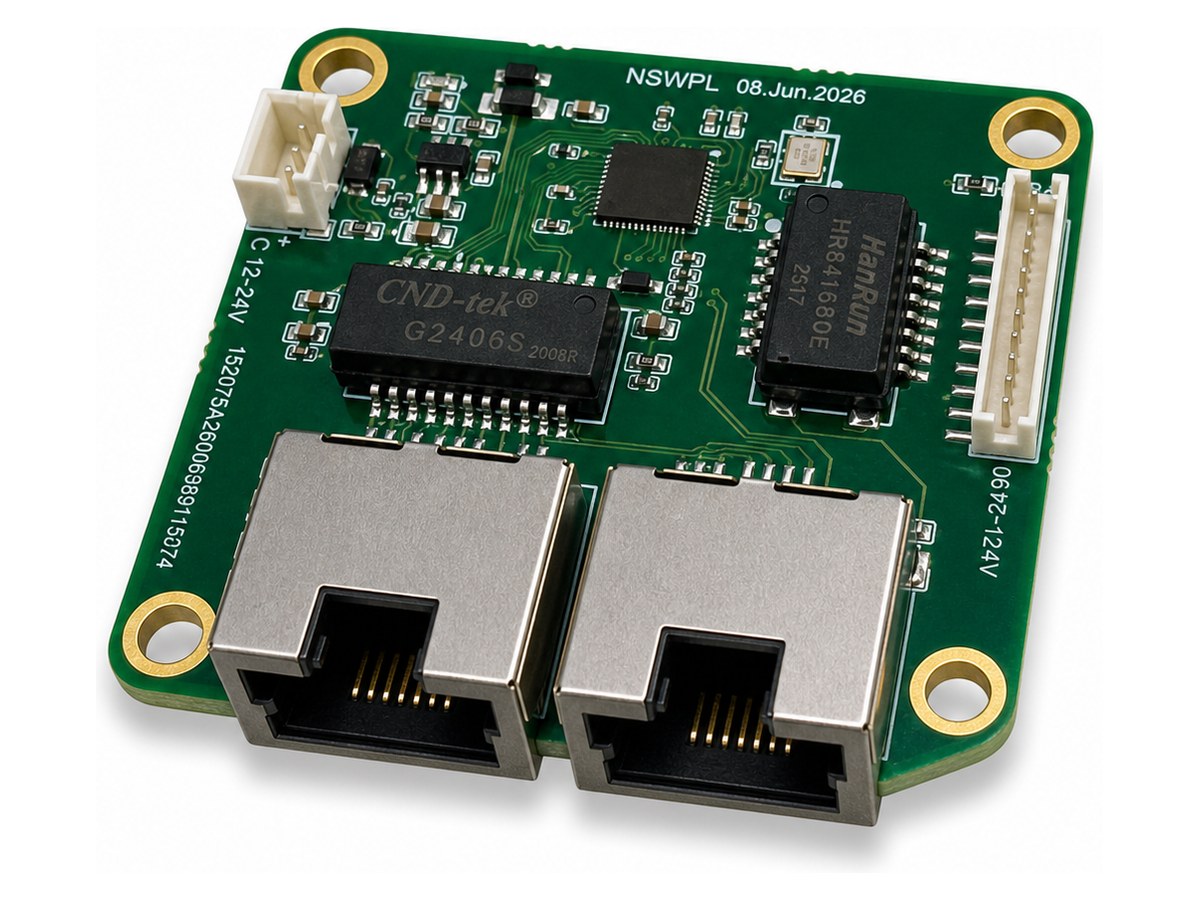

- Two RJ45 network ports — shielded board-mount sockets for network in / through

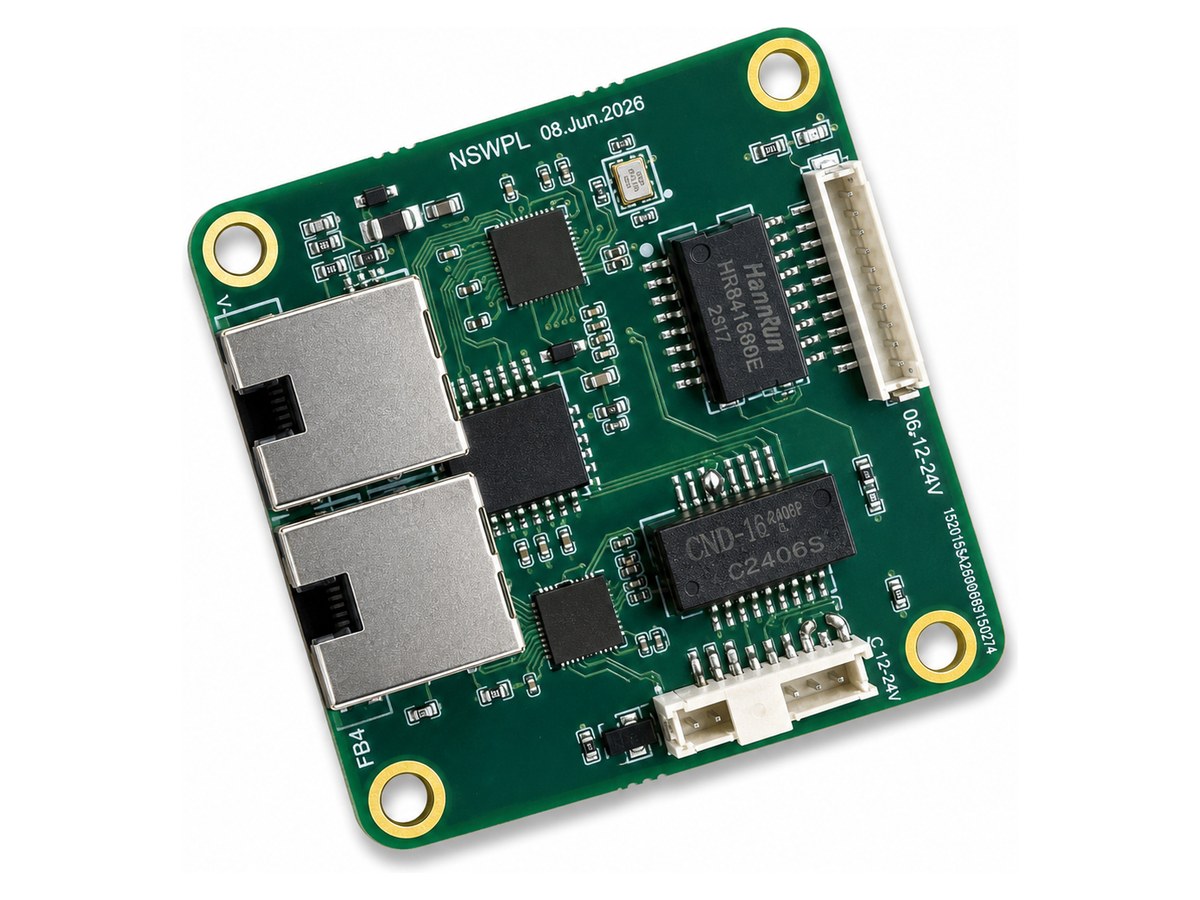

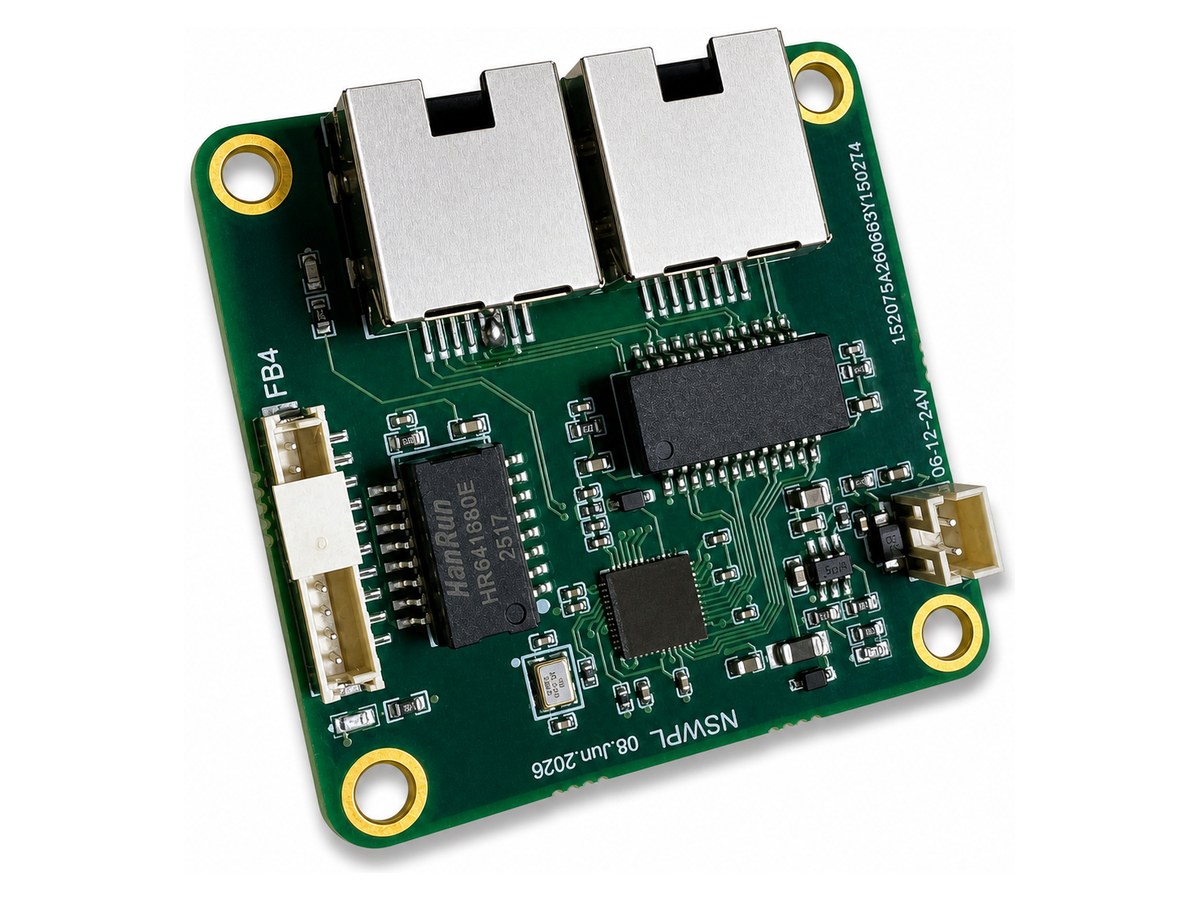

- Direct FB4 header — ribbon connector wires straight to the laser controller, no internal patch lead
- DC 12-24 V input — 2-pin power header
- Four mounting holes — gold-plated, for standoff mounting inside a fixture
- Board revision — NSWPL 08.Jun.2026
- OEM / ODM — mechanical layout, cable harness and connector position can be customised per project
Datasheet: Download the NSWPL datasheet (PDF) — full specifications plus a dimensioned mechanical drawing taken from the production CAD file.
Also available in this series: the NSW WP 3-port board with published 48 x 48 mm mechanical data, and the gigabit module with locking panel-mount ports for touring fixtures.
