Outdoor Waterproof Network Port Board for FB4 Laser Fixtures

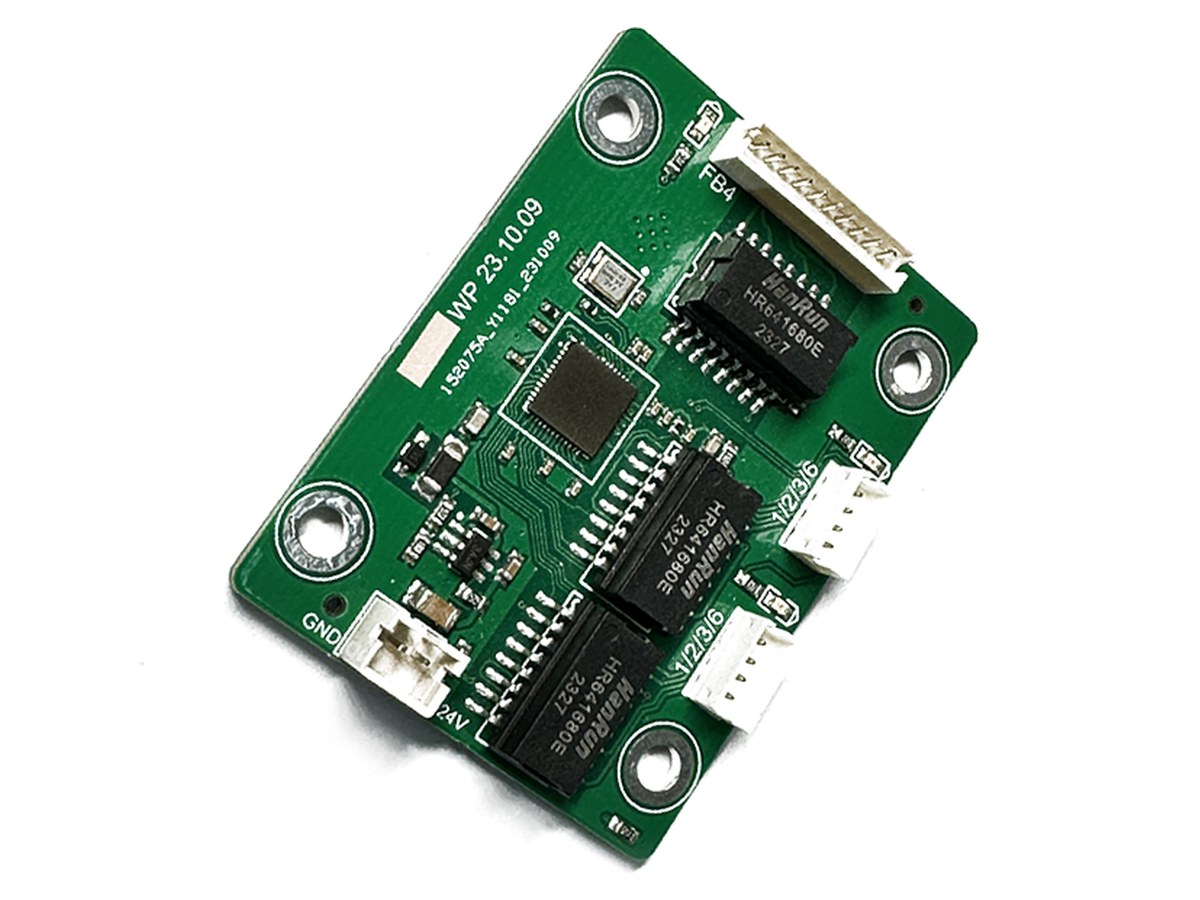

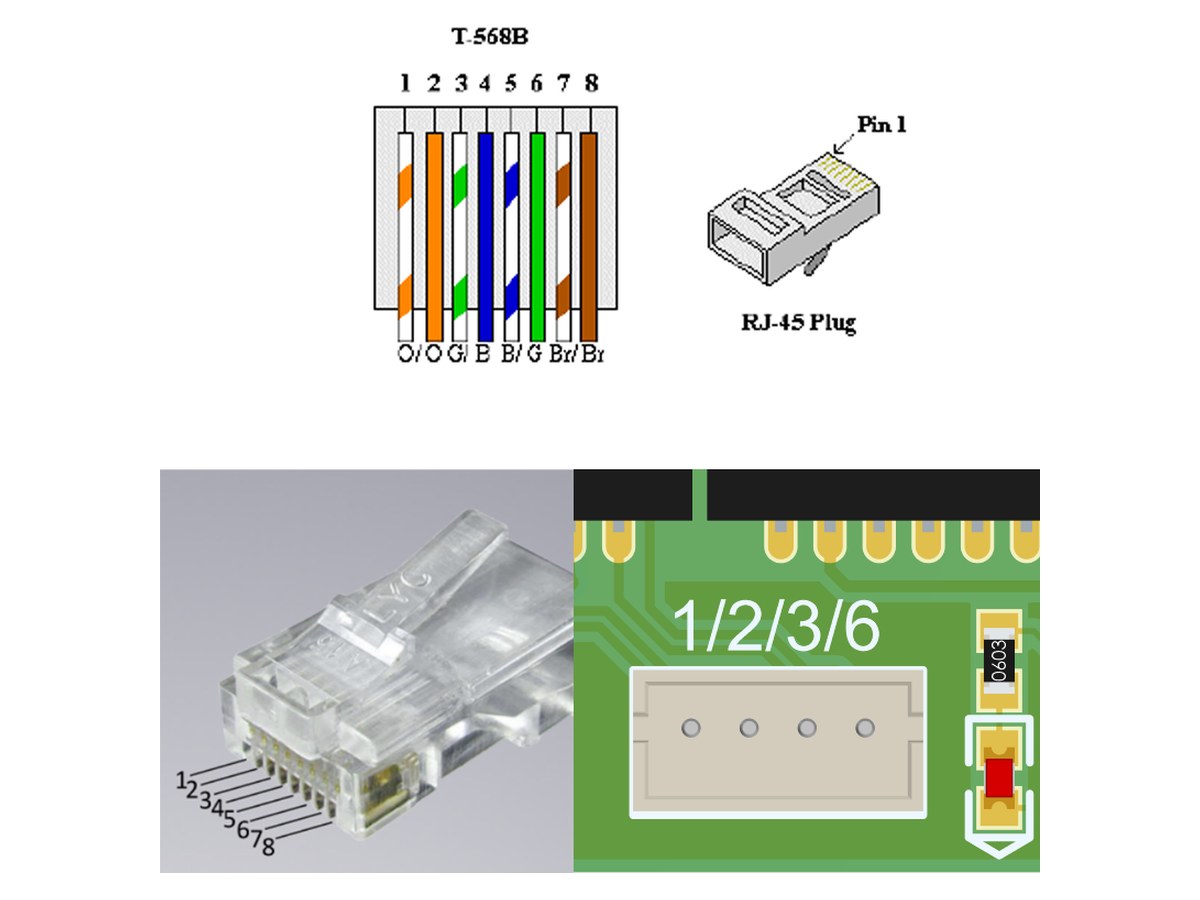

A 100M network port board for outdoor laser products. Instead of board-mounted RJ45 sockets, the two external ports leave the board on 4-pin pigtail headers marked 1/2/3/6 — the four conductors used by 100BASE-TX — so they can be wired directly to sealed panel-mount connectors on the fixture housing. The laser controller connects through the on-board FB4 header.
Sold as a factory box of 16 boards — US$390.20 per box, US$24.39 per board. Boards ship in a die-cut foam tray, one board per cell.
- 100M switching — for FB4-based outdoor laser fixtures
- Two pigtail network headers — 1/2/3/6 pinout, wired straight to waterproof panel connectors
- Direct FB4 header — ribbon connector to the laser controller
- DC 12-24 V input — 2-pin power header with GND / V+ marking
- Board revision — WP 23.10.09
Ingress protection comes from the housing. The board is a bare PCBA with no IP rating of its own; the seal is made by the panel connectors and the enclosure it is fitted into.
The newer NSW WP board covers the same application with standard RJ45 sockets and published 48 x 48 mm mechanical data.
